Deutz-Allis 512H

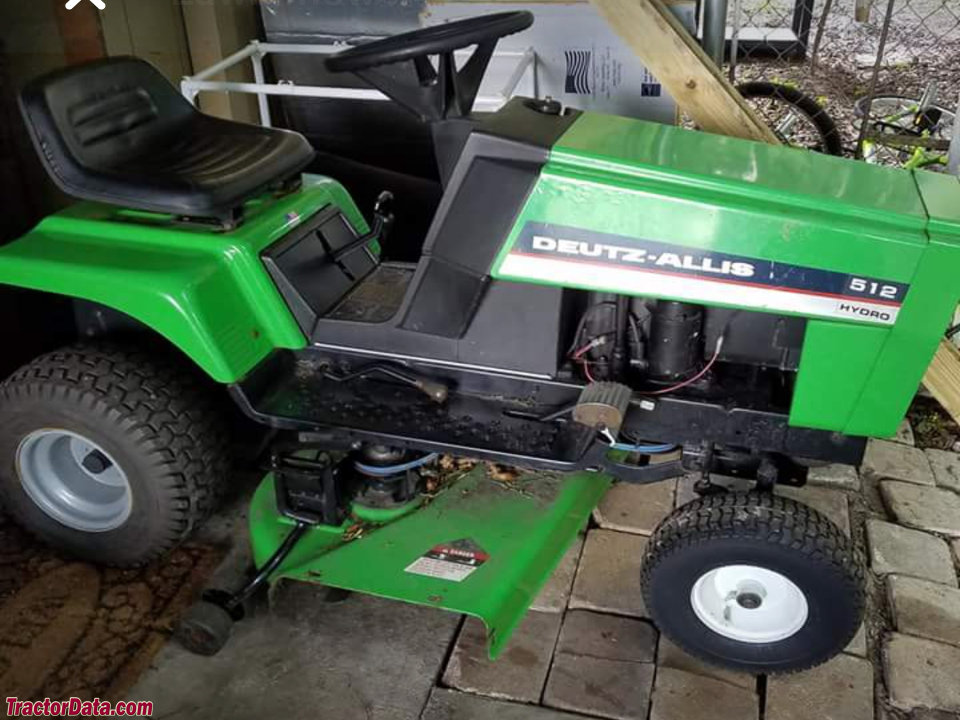

Deutz-Allis 512H lawn tractor photo
1991 - 1992
Lawn tractor
Simplicity built
Production
DistributorDeutz-Allis
ManufacturerSimplicity
TypeLawn tractor
FactoryPort Washington, Wisconsin, USA
Variants
512Ggear drive
512Hhydrostatic
Deutz-Allis 512H Engine
12.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank2.2 gal
8.3 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase45.5 inches
115 cm
Front tire15x6.00-6
Rear tire18x8.50-8
Full dimensions and tires ...
512H Serial Numbers
512H Serial Location

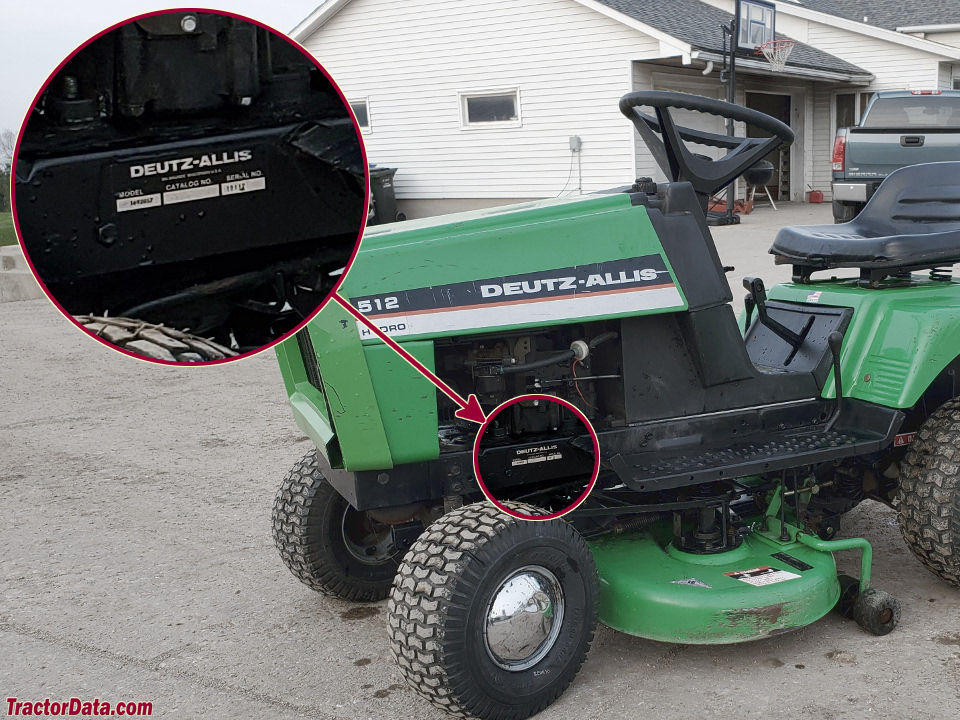

Deutz-Allis 512H serial number location
Serial number plate on the left side of the 512H tractor frame, just behind the front axle.
Electrical
Groundnegative
Battery volts12
