AMF 1414
|
|
| Production | |
| Manufacturer | AMF |
| Garden tractor | |
| Built in Des Moines, Iowa, USA | |
| Original price was $1,295 in 1971 | |
| AMF 1414 Engine | |
| 14HP Kohler 512cc 1-cyl gasoline | |
| Fuel tank | 2.75 gal 10.4 L |
 Engine details ... | |
| AMF 1414 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |

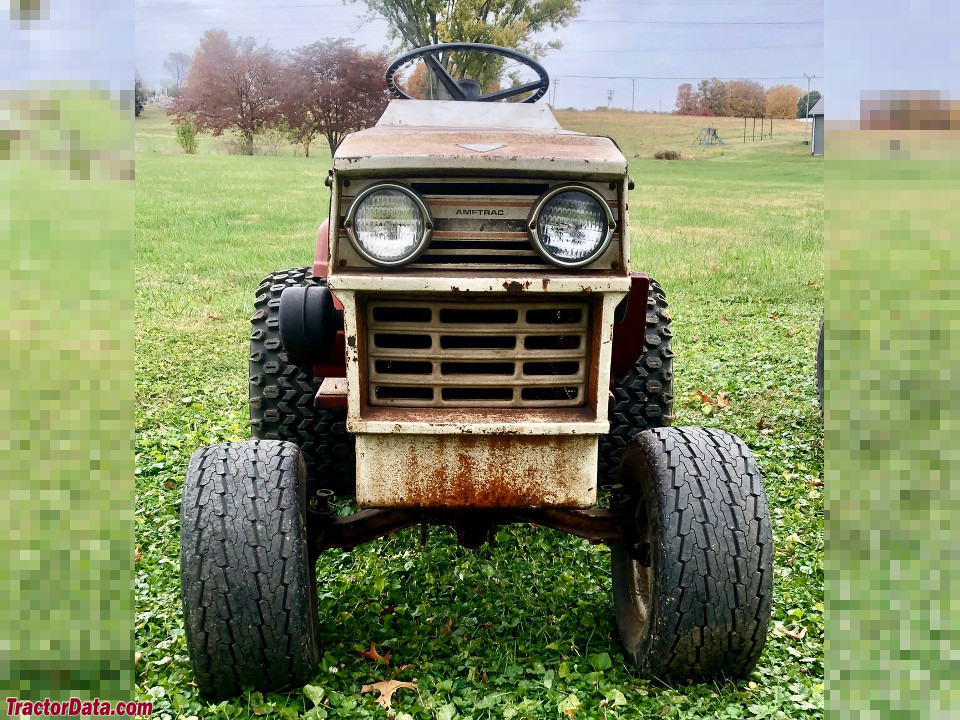

| Photos | |
 | |
 AMF 1414 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Dimensions & Tires | |
| Wheelbase | 46 inches 116 cm |
| Weight | 750 lbs 340 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 23x8.50-12 |
 Full dimensions and tires ... | |
| AMF 1414 attachments | |
| 42" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

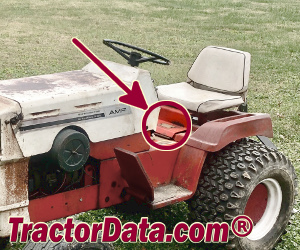

| 1414 Serial Number Location | |
 | |
| Serial number plate on top of the AMF 1414 fender deck, in front of the seat. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 46 |
| References | |
 | |
| New AMFTRAC 1414 published in 1969 | |
| We think lawn mowers are for mowing. published in 1970, by AMF* | |
| *Publication contains known errors. |
