| | 1989 - 1998 |
|
| Riding lawn mower |
|
Series map:
8-25
11-32
8.0hp
11.5hp
| Engine Detail |
| Briggs & Stratton 195707 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 318 cc
19.44 ci
|
| Bore/Stroke | 3.00x2.75 inches
76 x 70 mm
|
| Power (gross) | 8 hp
6.0 kW
|
| Starter | electric
|
| Starter volts | 12
|

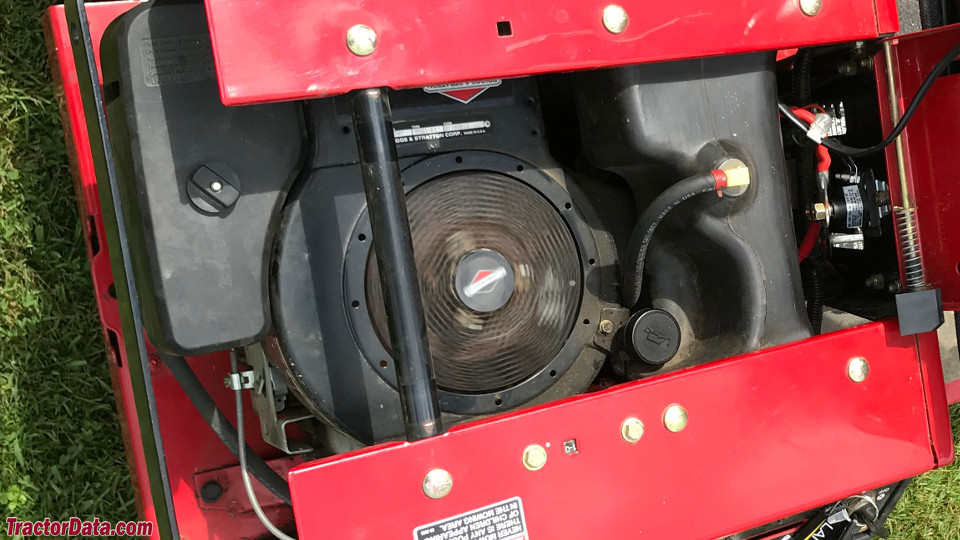

| Toro 8-25 Engine |
 |
| Image courtesy of Richard Kepple Jr |
