Craftsman 917.25479

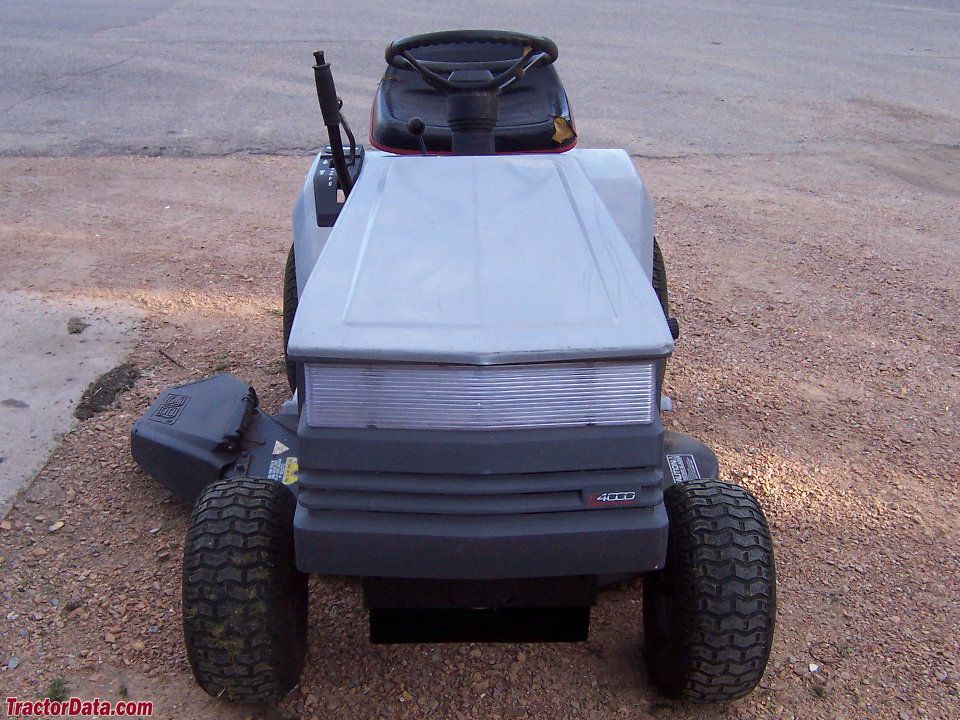

Craftsman 917.25479 lawn tractor photo
1991
LT4000 Series
Lawn tractor
AYP built
Production
DistributorCraftsman (a part of Sears)
ManufacturerAYP
TypeLawn tractor
Craftsman 917.25479 Engine
12.5HP Tecumseh 357cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
917.25479 Serial Numbers

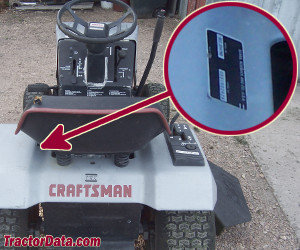

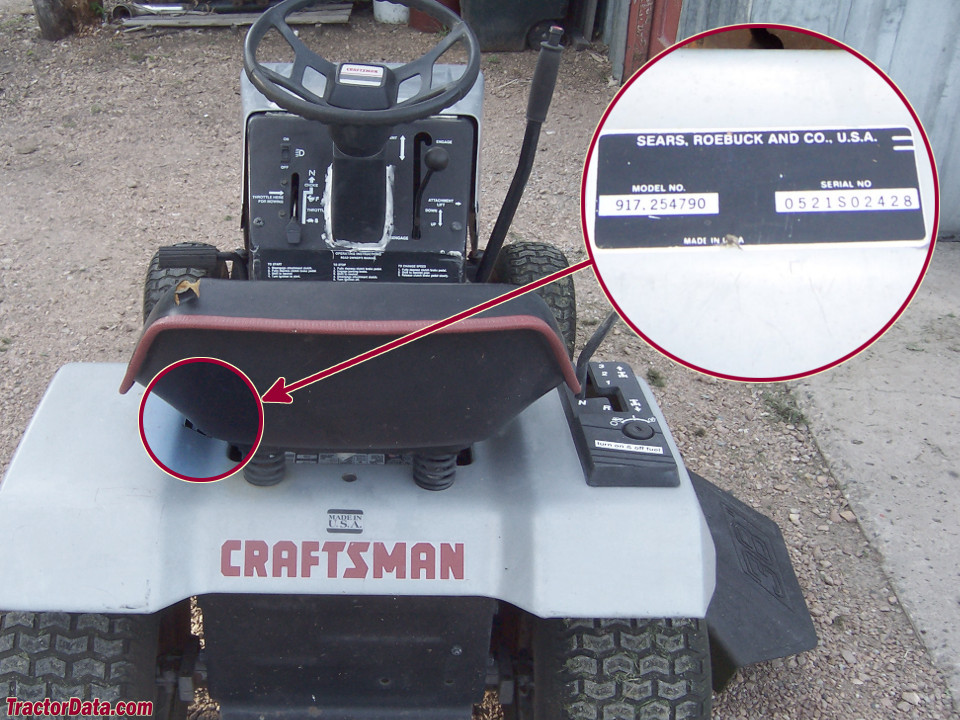

917.25479 Serial Location
Craftsman 917.25479 serial number location
Serial number plate on rear fender deck, under the tractor seat.
Electrical
Groundnegative
Charging amps3
Battery volts12
