Bolens 528 Engine


Bolens 528 lawn tractor photo
1979
Riding lawn mower
Series map:
528
5.0hp
Engine Detail
Briggs & Stratton 130902
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement206 cc
12.57 ci
Bore/Stroke2.56x2.44 inches
65 x 62 mm
Power (gross)5 hp
3.7 kW
Rated RPM3600
Starter typemanual recoil
SparkplugChampion J-8
Sparkplug gap0.030 inches
0.762 mm
Point gap0.020 inches
0.508 mm
Engine Oil

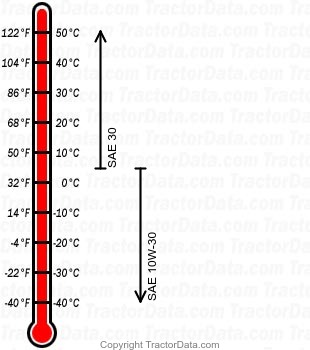

528 gasoline engine oil chart
Oil capacity0.9 qts
0.9 L
Oil change25 h
