Simplicity 5212

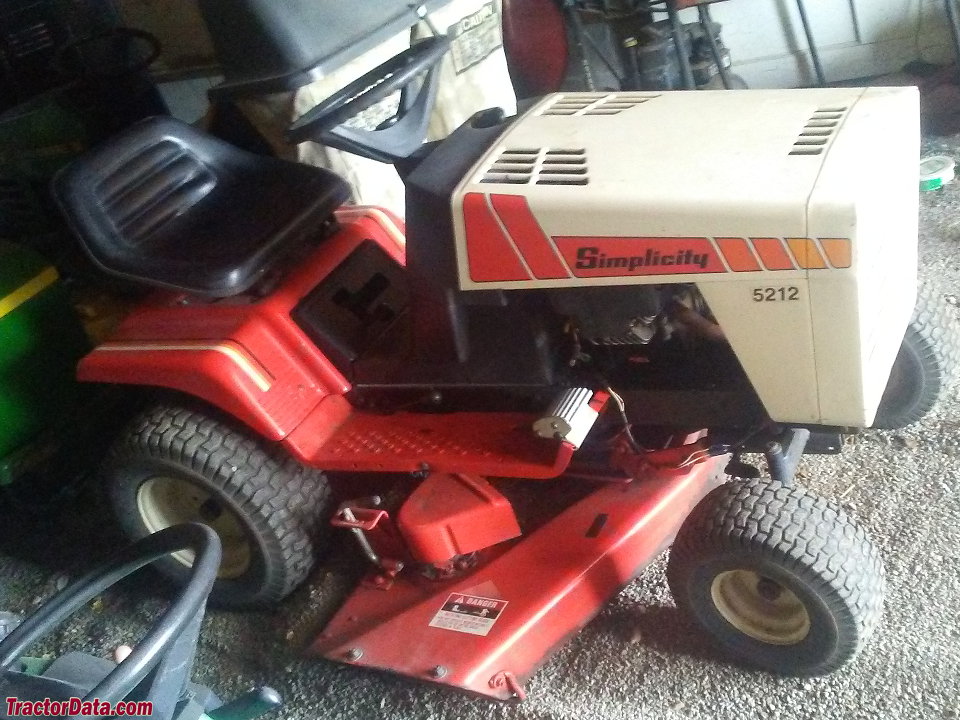

Simplicity 5212 lawn tractor photo
1987
5200 Series
Lawn tractor
Series map:
5211
5212
5212.5
11.0hp
12.0hp
12.5hp
Production
ManufacturerSimplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Simplicity 5212 Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank2.2 gal
8.3 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Wheelbase48.2 inches
122 cm
Weight372 lbs
168 kg
Front tire15x6.00-6
Rear tire20x8.00-10
Full dimensions and tires ...
Simplicity 5212 attachments
42" mid-mount mower deck
mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH39
