Lawn Tractors > Craftsman > 917.27621

Craftsman 917.27621

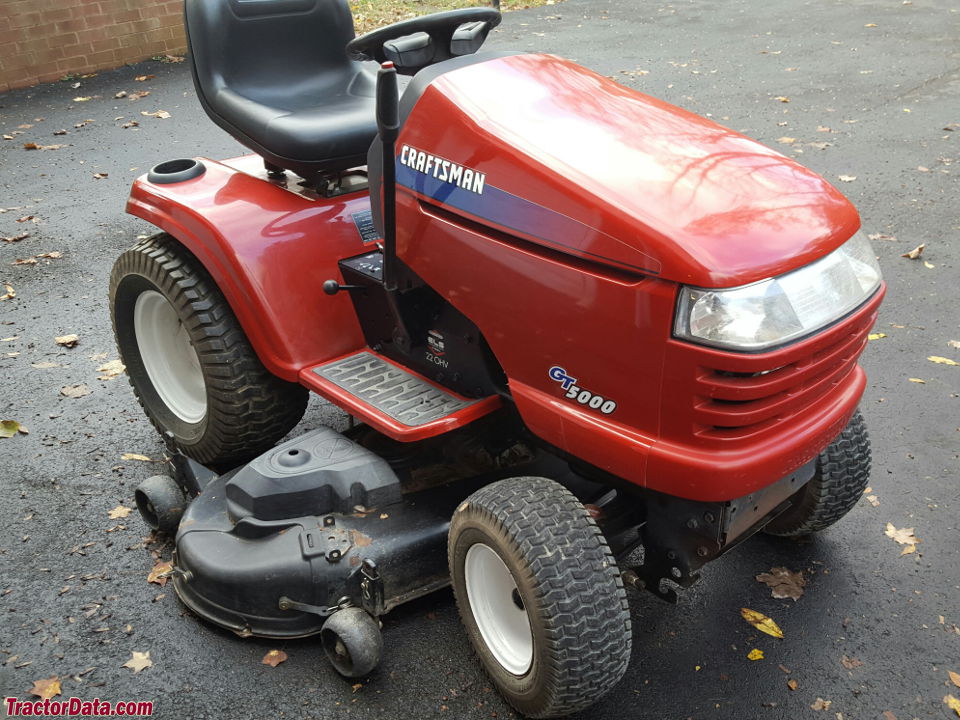

Craftsman 917.27621 lawn tractor photo
GT 5000 Series
Garden tractor






Production:

Distributor:Sears
Manufacturer:AYP


Craftsman 917.27621 Engine:

   22HP Briggs & Stratton 655cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:5 gal [18.9 L]


Power Take-off (PTO):

Front PTO:independent
Clutch:electric


Dimensions & Tires:

Front tire:16x6.5-8
Rear tire:23x10.5-12
full dimensions and tires ...


Craftsman 917.27621 attachments:

 54" mid-mount mower deck
all 917.27621 attachments ...


917.27621 Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:6-speed gear
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative
Charging amps:16


Battery:

Number:1
Cold-cranking amps:280
Volts:12
Amp-hours:35
Group:U1R
