Lawn Tractors > Bolens > FS-11 942

Bolens FS-11 942

Bolens FS-11 942 lawn tractor photo
1982 - 1984   Frame Steer Series
Articulated front-mount mower
Previous model:Bolens 940
Next model:Bolens 943






Production:

Manufacturer:Bolens
Original price (USD)
   $2,390 (1982 )


Bolens 942 Engine:

   11HP Briggs & Stratton 1-cyl gasoline
full engine details ...


Capacity:

Fuel:1.5 gal [5.7 L]


Dimensions & Tires:

Weight:443 lbs [200 kg]
Front tire:16x6.50-8
Rear tire:16x6.50-8
full dimensions and tires ...


Bolens 942 attachments:

 42" front-mount mower deck
 snowblower
 blade
all 942 attachments ...


942 Serial Numbers:

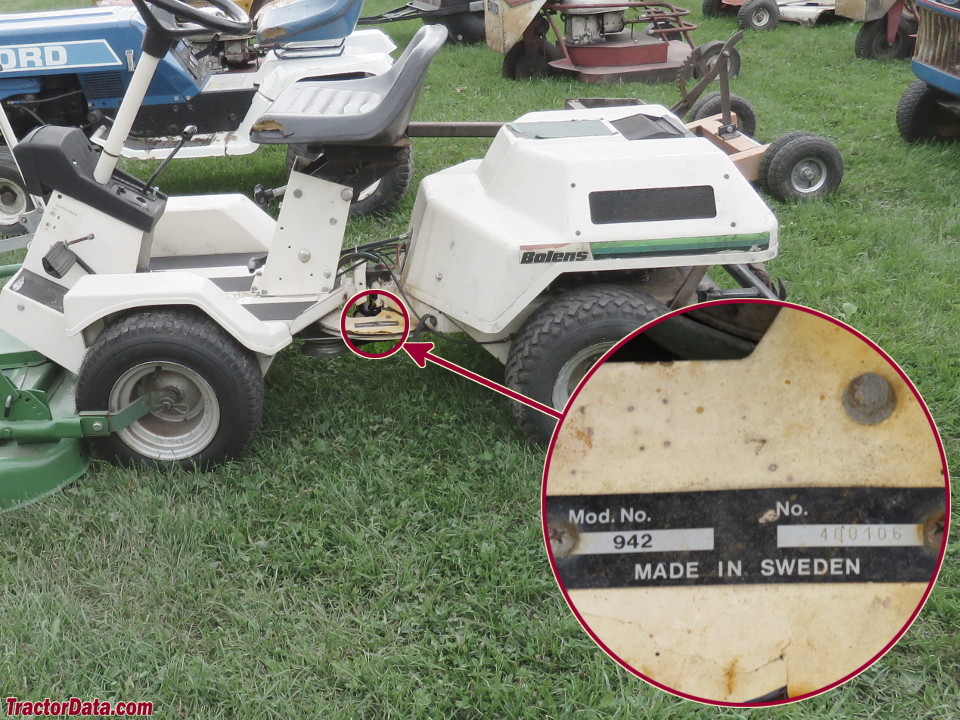

Location:Serial number plate on left side of tractor, on articulation joint.

- Serial numbers unknown -



Mechanical:

Transmission:5-speed gear
Chassis:4x2 2WD
Steering:manual articulated
Brakes:disc
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
Amp-hours:19
