Kubota F2560

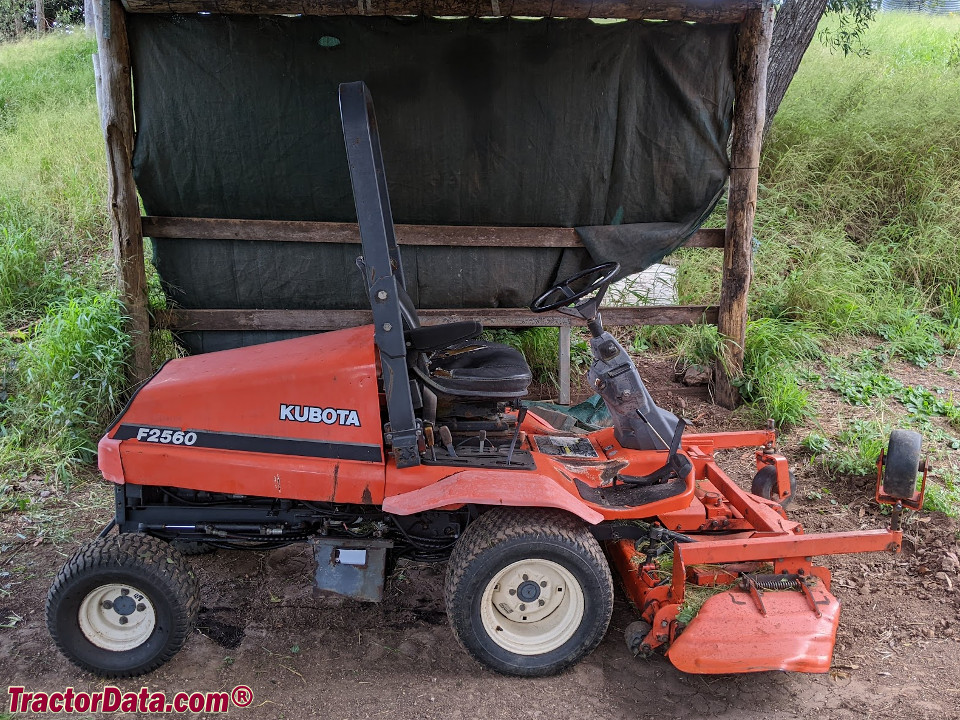

Kubota F2560 lawn tractor photo
1997 - 2005
F60 Series
Front-mount mower
Series map:
F2260
F2560
F3060
22.0hp
25.0hp
30.0hp
Production
ManufacturerKubota
Front-mount mower
Variants
GF2560E2WD
Kubota F2560 Engine
25HP Kubota 1122cc 3-cyl diesel
Fuel tank10.5 gal
39.7 L
Engine details ...
Mechanical
Drive4x2 2WD
 4x4 4WD
Power steering
Wet disc brakes
Two-post folding ROPS.
Power Take-off (PTO)
Front PTOindependent
Clutchhydraulic
Dimensions & Tires
Wheelbase51.2 inches
130 cm
Weight1290 lbs
585 kg
Front tire23x10.50-12
Rear tire18x7.00-8
Full dimensions and tires ...
Kubota F2560 attachments
60" front-mount mower deck
72" front-mount mower deck
Attachment details ...
F2560 Serial Number Location
Kubota F2560 serial number location
Serial number decal on the left side of the mower frame, ahead of the rear axle.
Electrical
Groundnegative
Battery volts12
Battery AH70

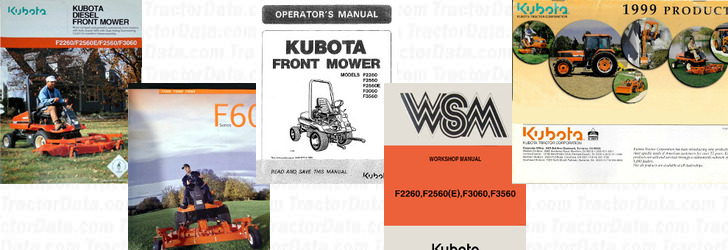

References
F2560 references literature
Diesel Front Mower F2260/F2560E/F2560/F3060 published in 1996, by Kubota
1999 Products published by Kubota
