Cub Cadet Tank LZ54 KH

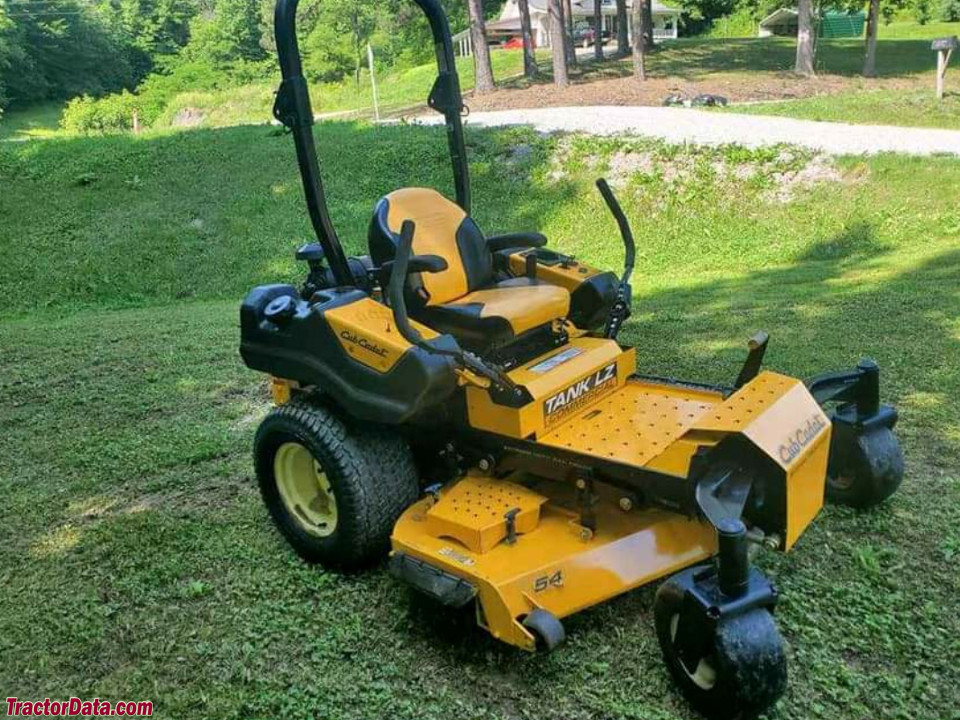

Cub Cadet Tank LZ54 KH lawn tractor photo
2012 - 2013
Tank L Series
Zero-turn mower
Production
ManufacturerCub Cadet (a part of MTD)
Zero-turn mower
Variants
LZ54-KHKohler engine
LZ54-KWKawasaki engine
Cub Cadet Tank LZ54 Engine
25HP Kohler 721cc 2-cyl gasoline
Fuel tank15 gal*Dual 7.5 gallon tanks
56.8 L
Engine details ...
Mechanical
Two-wheel drive
Steeringdifferential power
Drum brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase54 inches
137 cm
Weight1160 lbs
526 kg
Front tire13x6.5-6
Rear tire24x12-12
Full dimensions and tires ...
Electrical
Groundnegative
Charging amps20
Battery volts12
