Ariens GT17 931019 Engine

Ariens GT17 931019 lawn tractor photo
1979 - 1987
Garden tractor
Series:GT16GT17 931019GT18
Engine Detail
Kohler KT-17
air-cooled horizontal-shaft opposed-twin
Displacement691 cc
42.18 ci
Bore/Stroke3.12x2.75 inches
79 x 70 mm
Power (gross)17 hp
12.7 kW
Fuel use1.7 gal/hour
6.4 l/hour
Air cleanerdry element with foam precleaner
Starter volts12
Sparkplug gap0.025 inches
0.635 mm
Engine Oil

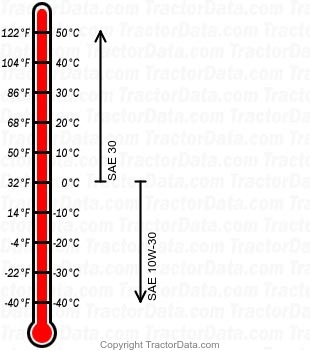

GT17 931019 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L

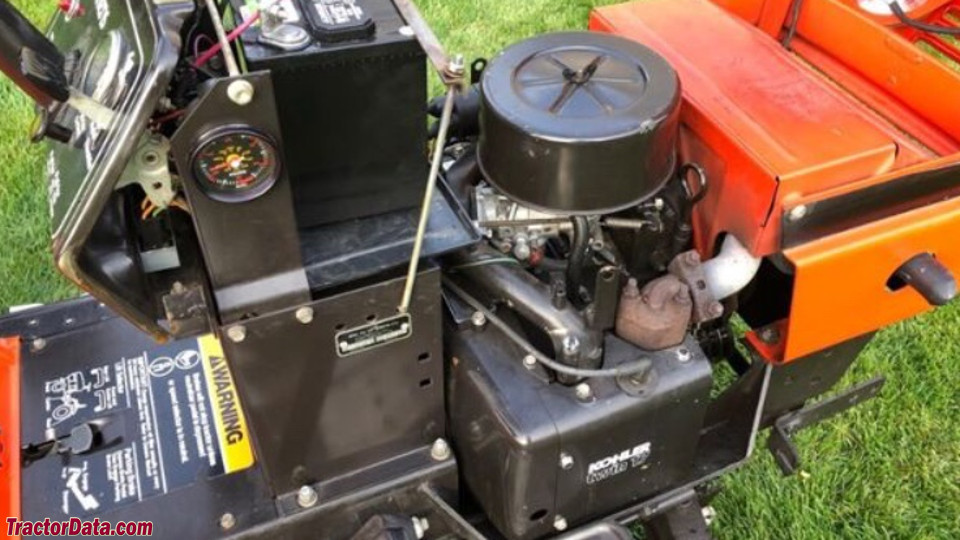

Ariens GT17 Engine
Ariens GT17 engine image
Image courtesy of Dan La Pointe
