Lawn Tractors > Kubota > ZG124E

Kubota ZG124E

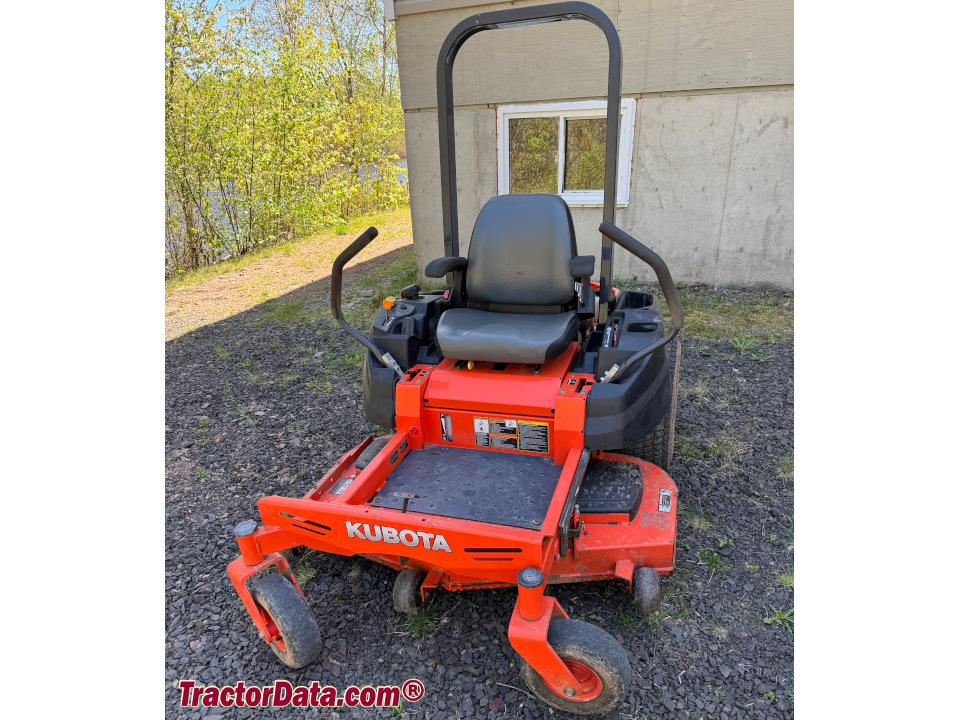

Kubota ZG124E lawn tractor photo
2013 - 2013   ZG100 Series
Zero-turn mower






Production:

Manufacturer:Kubota


Kubota ZG124E Engine:

   24HP 724cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:4.3 gal [16.3 L]


Power Take-off (PTO):

Mid PTO:independent
Clutch:electric


Dimensions & Tires:

Wheelbase:45.5 inches [115 cm]
Weight:726 lbs [329 kg]
Front tire:11x4-5
Rear tire:22x10-14
full dimensions and tires ...


Kubota ZG124E attachments:

 48" mid-mount mower deck
all ZG124E attachments ...


ZG124E Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:differential power
Brakes:mechanical cog
Cab:Two-post fixed ROPS.


Electrical:

Ground:negative
Charging amps:16


Battery:

Number:1
Cold-cranking amps:300
Volts:12
