Kubota Z724X

Kubota Z724X lawn tractor photo
2015 -
Z700 Series
Zero-turn mower
TypeZero-turn mower
Original price$9,499 (2021 )
Kubota Z724X Engine
23.5HP Kawasaki 721cc 2-cyl gasoline
Fuel tank11.6 gal
43.9 L
Engine details ...
Chassis4x2 2WD
Brakesdrum discs
CabTwo-post foldable ROPS.
No photos of the Kubota Z724X are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric dry disc
Dimensions & Tires
Wheelbase50.9 inches
129 cm
Weight1163 to 1179 pounds
Front tire13x5.0-6
Rear tire24x9.5-12
Full dimensions and tires ...
Kubota Z724X attachments
48" mid-mount mower deck
54" mid-mount mower deck
Attachment details ...
Charging amps15
Battery CCA300
Battery volts12

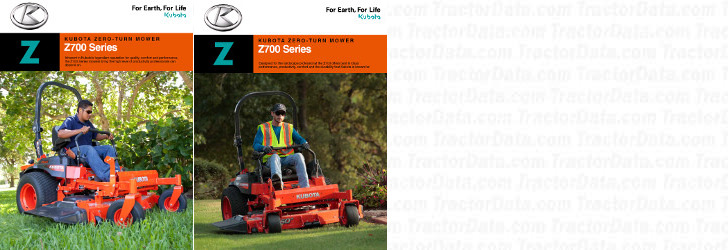

Z724X reference literature
Z700 Series published in 2014, by Kubota
Z700 Series published in 2018, by Kubota
