Sears Super 14 917.25640

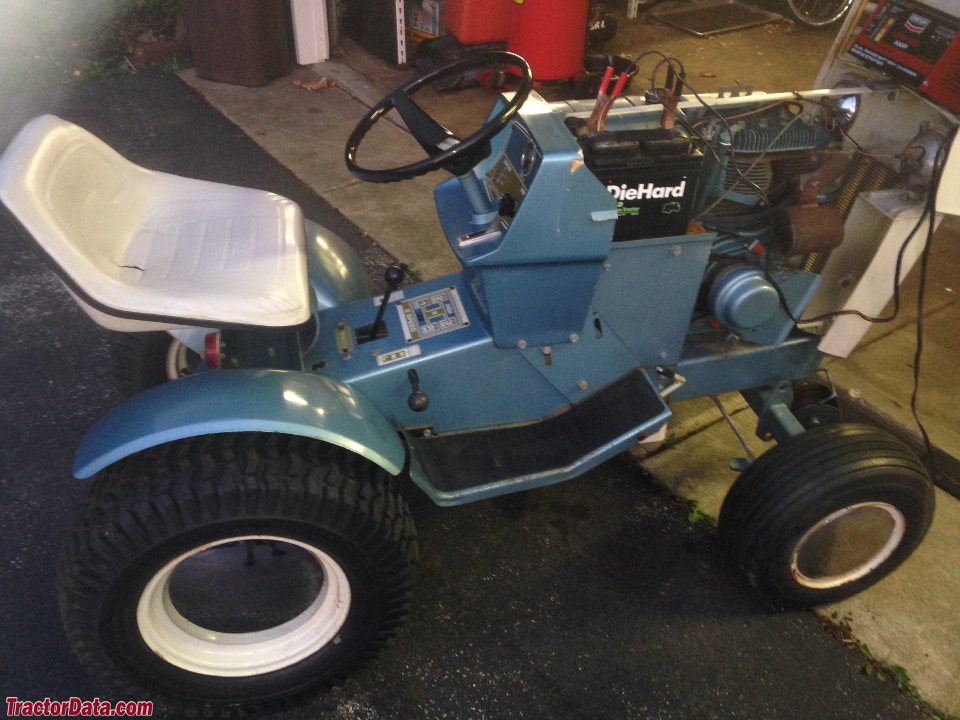

Sears Super 14 917.25640 lawn tractor photo
1971
Garden tractor
Roper built
Production
DistributorSears
ManufacturerRoper
TypeGarden tractor
Original price$985 (1971 )
Sears Super 14 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Tractor hitch
TypeSears 3-Point OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Weight670 lbs
303 kg
Front tire16x6.50-8
Rear tire23x9.50-12
Full dimensions and tires ...
Sears Super 14 attachments
42" mid-mount mower deck
48" mid-mount mower deck
front-end loader
Attachment details ...
Super 14 Serial Numbers
Super 14 Serial Location

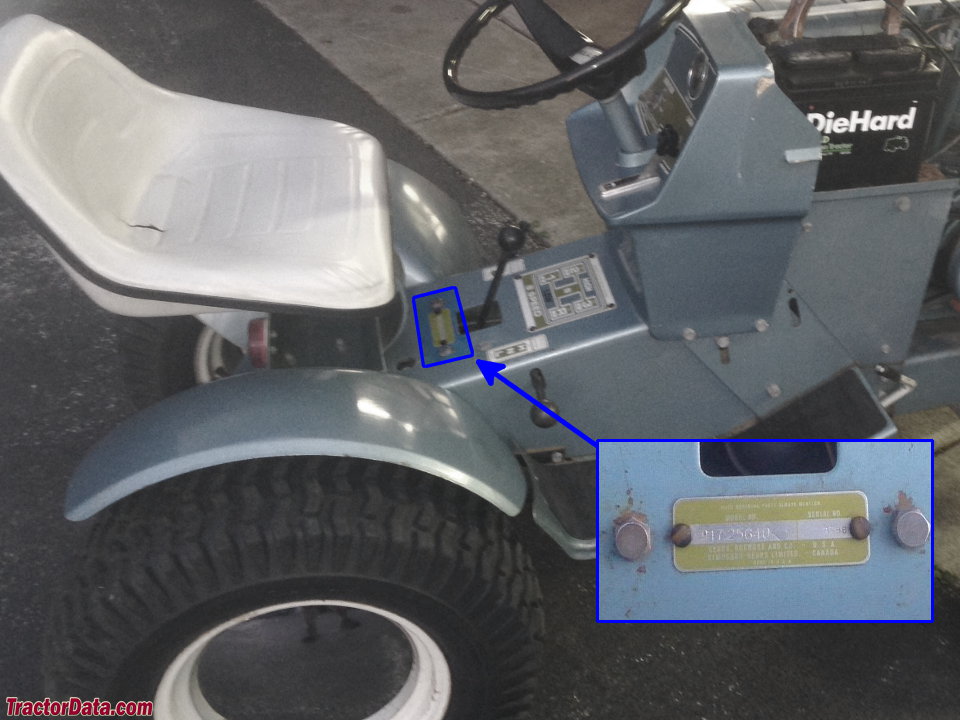

Sears Super 14 serial number location
Serial number plate just behind the gear shift, below the front of the seat.
Electrical
Groundnegative
Battery volts12
Battery AH39
References
Super 14 917.25640 reference literature
Owner's Manual Super 14 Tractor (784R) published in 1971, by Sears
Spring through Summer Catalog published in 1971, by Sears
Suburban and Farm Living published in 1971, by Sears
