Lawn Tractors > Sears > Super 12 917.25120

Sears Super 12 917.25120

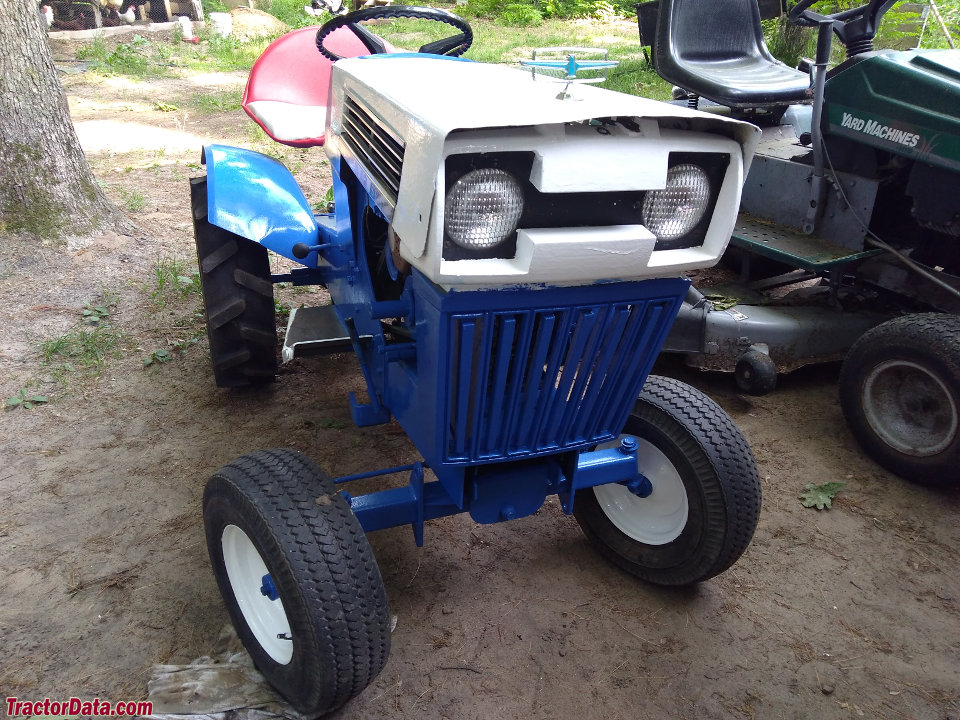

Sears Super 12 917.25120 lawn tractor photo
1967 - 1972
Model years
Garden tractor






Production:

Distributor:Sears
Manufacturer:David Bradley


Sears Super 12 Engine:

   12HP Tecumseh 453cc 1-cyl gasoline
full engine details ...


Capacity:



Rear Hitch:

Type:Sears 3- Point*Optional


Dimensions & Tires:

Weight:630 lbs [285 kg]
Front tire:16x6.50-8
Rear tire:23x9.50-12
full dimensions and tires ...


Sears Super 12 attachments:

 42" mid-mount mower deck
 48" mid-mount mower deck
all Super 12 attachments ...


Super 12 Serial Numbers:


how to read serial numbers...



Mechanical:

Transmission:6-speed gear
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
