John Deere RX73

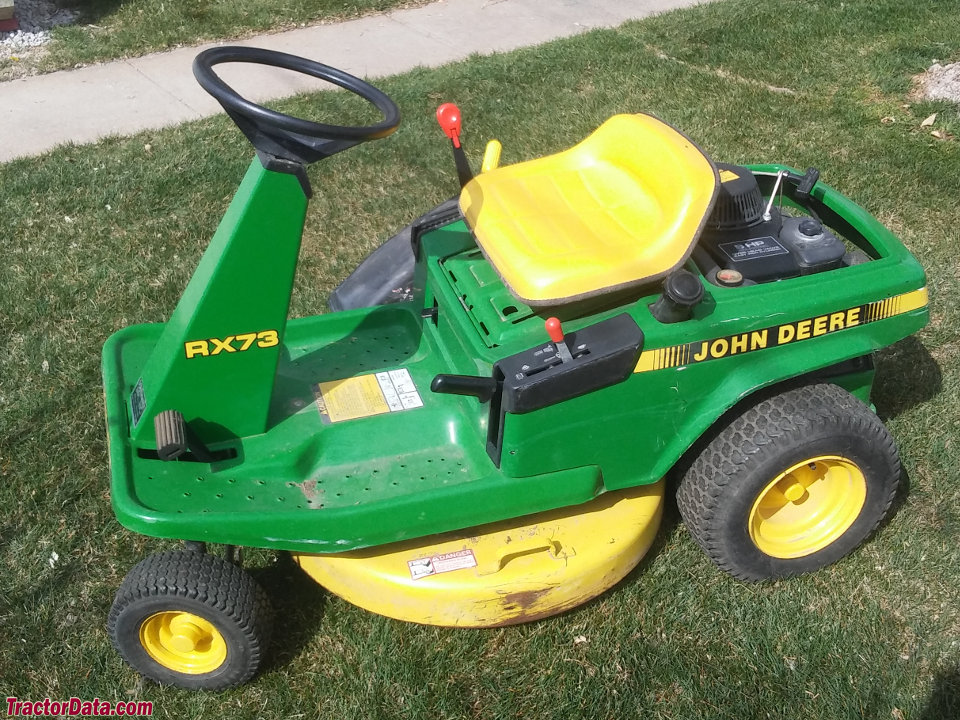

John Deere RX73 lawn tractor photo
1987 - 1990
Riding lawn mower
R70
Series:RX63RX73RX75
GX70
Production
ManufacturerJohn Deere
TypeRiding lawn mower
Original price$1,550 (1990 )
John Deere RX73 Engine
9HP Kawasaki 290cc 1-cyl gasoline
Fuel tank1.0 gal
3.8 L
Engine details ...
John Deere RX73 Transmission
7-speed mechanical variable transmission
Transmission details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station
Power Take-off (PTO)
Mid PTOindependent
Clutchmechanical
Dimensions & Tires
Wheelbase42 inches
106 cm
Weight380 lbs
172 kg
Front tire11x4.00-5
Rear tire16x6.50-8
Full dimensions and tires ...
RX73 Serial Numbers
Location:Serial number plate on the rear of the John Deere RX73, to the left of the drawbar.
1987M0RX73X420001
1988M0RX73X475001
1989M0RX73X595001
1990M0RX73X010001

FAQ: How to read a serial number table.
References
RX73 reference literature
Operator's Manual RX73, RX75, RX95, SX75, and SX95 Riding Mowers published in 1987, by John Deere
