Snapper 1650


Snapper 1650 lawn tractor photo
1979 - 1984
Garden tractor
Series:160016501855
Production
ManufacturerSnapper
TypeGarden tractor
FactoryFort Worth, Texas, USA
Variants
1650Ahitch and PTO
Snapper 1650 Engine
16HP Kohler 588cc 1-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station.
Tractor hitch
Rear Type0 OptOptional
Rear lift (at ends)650 lbs
294 kg
Power Take-off (PTO)
Rear PTOindependent OptOptional
Rear RPM2000
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase47 inches
119 cm
Weight860 to 950 pounds
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Snapper 1650 attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...

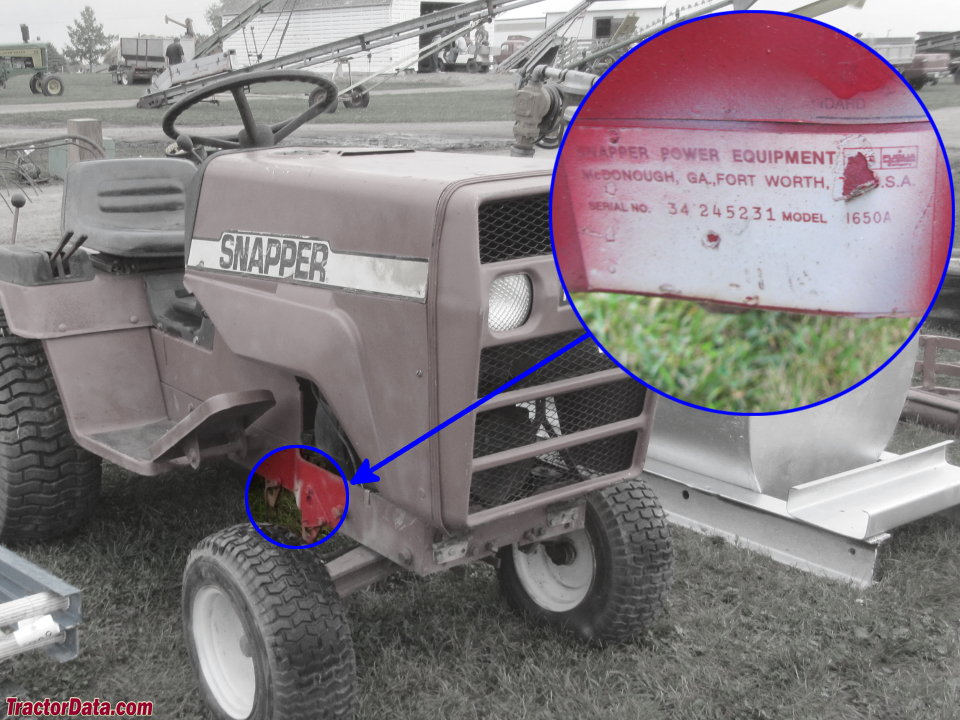

1650 Serial Location
Snapper 1650 serial number location
Electrical
Groundnegative
Battery volts12
References
1650 reference literature
Garden Tractors published in 1981, by Snapper
Service manual for 1600, 1650, 1855 Series published by Snapper
Operator's manual for Model 1650, 1650A (1-3016) published in 1979, by Snapper
Discover the Difference published in 1983, by Snapper
