Lawn Tractors > Simplicity > Legacy 25

Simplicity Legacy 25 Transmission



Simplicity Legacy 25 lawn tractor photo
1998 - 2003
Legacy Series
Garden tractor
Series map:
Legacy 24.5
Legacy 25
24.5hp
25.0hp
Transmission
TransmissionSundstrand 15U
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity6 qts
5.7 L
Oil type
ATF F
Oil change400 h
Sundstrand 15 hydrostatic with Peerless 2600 transaxle.
Speeds

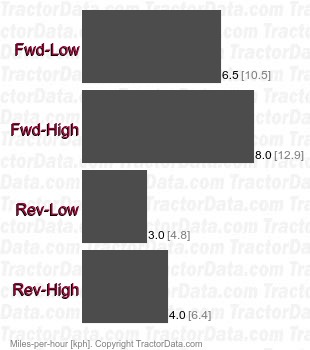

Legacy 25 15U shaft-driven hydrostatic speeds
