Simplicity Landlord 16

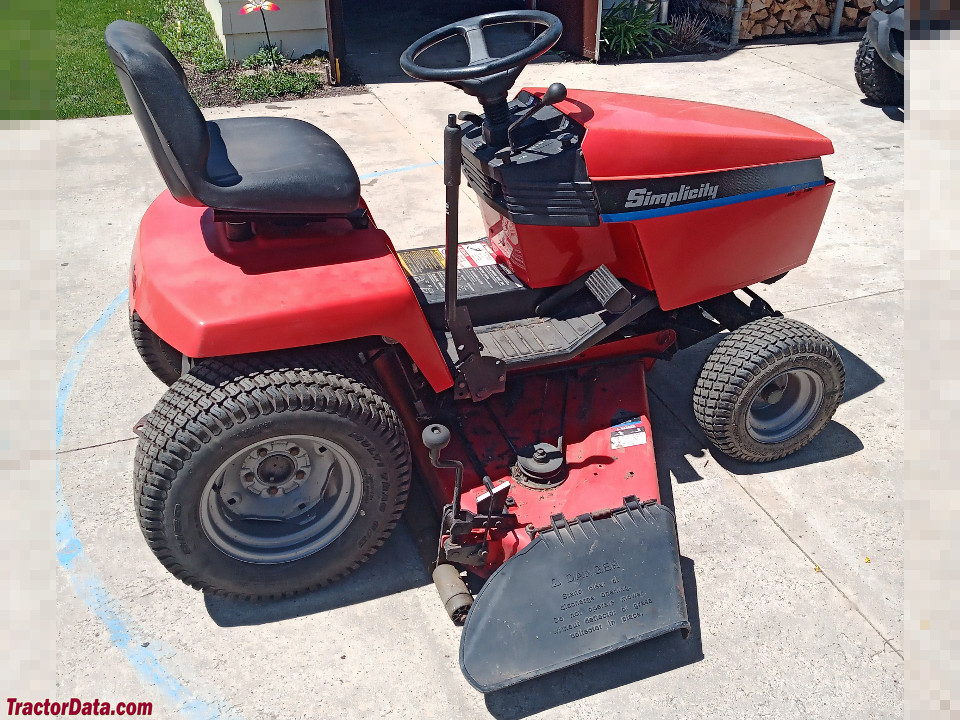

Simplicity Landlord 16 lawn tractor photo
1992 - 1998
Landlord Series
Garden tractor
Series map:
Landlord 14
Landlord 16
Landlord 17
14.0hp
16.0hp
17.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price$5,250 (1993 hydro )
$4,500 (1994 gear )
$5,350 (1994 hydro )
Variants
1716similar AGCO model
Simplicity Landlord 16 Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank4 gal (early)
15.1 L
 5 gal (late)
18.9 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectro-magnetic
Dimensions & Tires
Wheelbase51.5 inches
130 cm
Weight670 lbs
303 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Simplicity Landlord 16 attachments
44" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps16
Battery CCA340
Battery volts12
References
Landlord 16 references literature
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
Lawn & Garden Equipment published in 1998, by Simplicity
1993 Price List published in 1992, by Simplicity
1994 Price List published in 1993, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity
