Lawn Tractors > Simplicity > 6516

Simplicity 6516

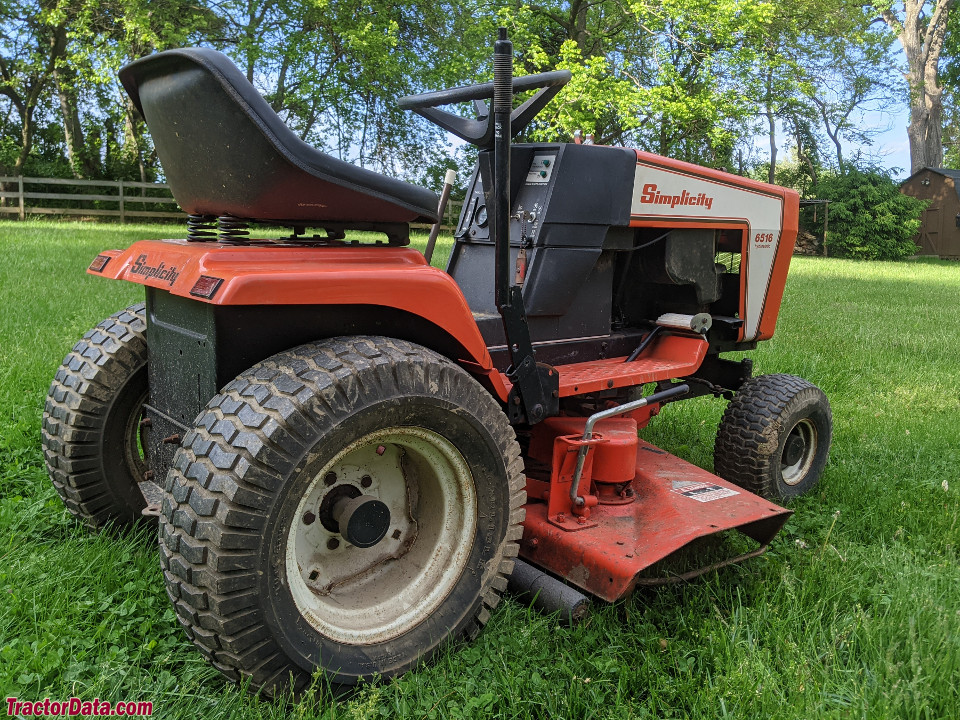

Simplicity 6516 lawn tractor photo
1988 - 1989
6500 Series
Garden tractor
Series map:
6516
hp
16.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Simplicity 6516 Engine
16HP Briggs & Stratton 658cc 2-cyl gasoline
Fuel tank2.2 gal
8.3 L
Engine details ...
Simplicity 6516 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steeringmanual
Open operator station.
Photos
Simplicity 6516
Simplicity 6516 photos...
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical
Dimensions & Tires
Wheelbase48.3 inches
122 cm
Weight485 lbs
219 kg
Front tire15x6.00-6
Rear tire23x10.50-12
Full dimensions and tires ...
Simplicity 6516 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH39
References
6516 references literature
Outdoor Power Equipment published in 1987, by Simplicity
