John Deere LR175

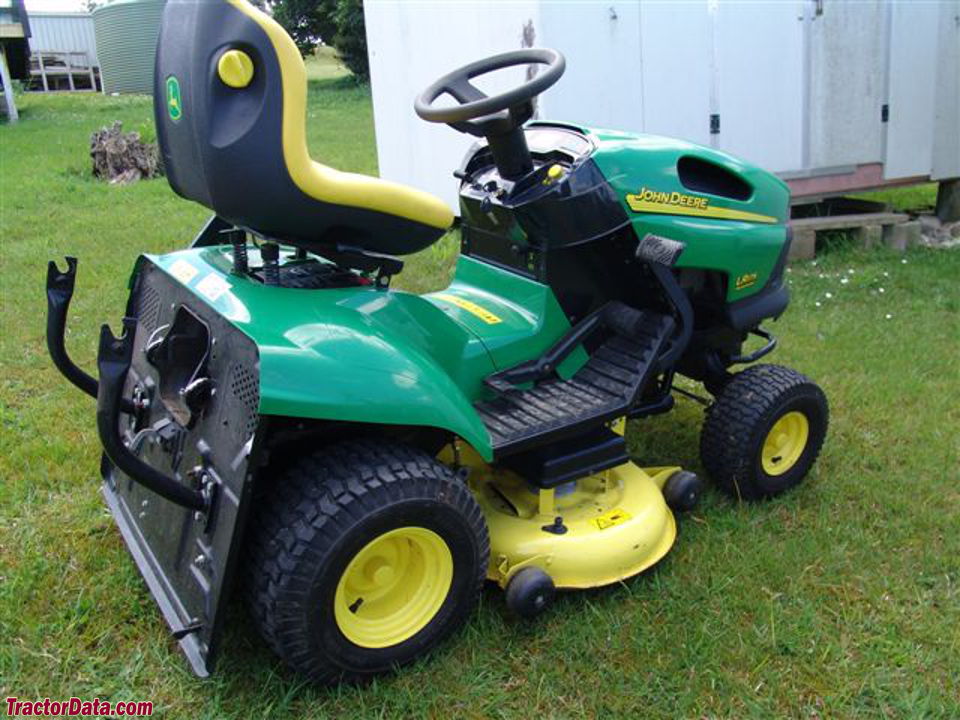

John Deere LR175 lawn tractor photo
2004 - 2010
LR Series
Rear-discharge mower
Production
ManufacturerJohn Deere
Rear-discharge mower
John Deere LR175 Engine
13.0KW Briggs & Stratton 502cc 1-cyl gasoline
Fuel tank1.6 gal
6.1 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Disc on transmission brakes
Open operator station.
Dimensions & Tires
Wheelbase45.3 inches
115 cm
Weight518.1 lbs
235 kg
Front tire15x5.00-6
Rear tire18x8.50-8
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
Battery AH24
References
LR175 references literature
CR/LR Series Rear Discharge Riders & Lawn Tractors published by John Deere
