Lawn Tractors > Power King > 2418

Power King 2418

Power King 2418 lawn tractor photo
1977 - 1983
Garden tractor






Production:

Manufacturer:Engineering Products Company
Factory:Waukesha, Wisconsin, USA


Power King 2418 Engine:

   18HP Kohler 588cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:3 gal [11.4 L]
Hydraulic system:5 gal [18.9 L]


3-Point Hitch:

Rear Type:0 (optional)


Power Take-off (PTO):

Rear PTO:independent (optional)
Clutch:electro-magnetic
Rear RPM:2000
Front PTO:independent
Clutch:electro-magnetic


Dimensions & Tires:

Wheelbase:54.375 inches [138 cm]
Weight:1076 to 1093 pounds
Front tire:4.00-12
Rear tire:8.30-24
full dimensions and tires ...


Power King 2418 attachments:

 48" mid-mount mower deck
 60" mid-mount mower deck
 snowblower
 blade
 front-end loader
all 2418 attachments ...


2418 Serial Numbers:

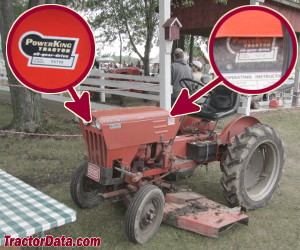

Location:Serial number decal on tractor dashboard and front of hood.

- Serial numbers unknown -



Mechanical:

Transmission:3-speed gear
Transmission:4-speed gear
Transmission:9-speed gear
Chassis:4x2 2WD
Final drives:bull gear
Steering:manual
Brakes:mechanical drum
Cab:Open operator station. Vinyl weather cab optional.


Hydraulics:

Type:open center
Capacity:5 gal [18.9 L]
Pressure:1000 psi [69.0 bar]
Pump flow:1.7 gpm [6.4 lpm]


Electrical:

Ground:negative
Charging system:flywheel alternator
Charging amps:15


Battery:

Number:1
Volts:12
