Craftsman 132.82400

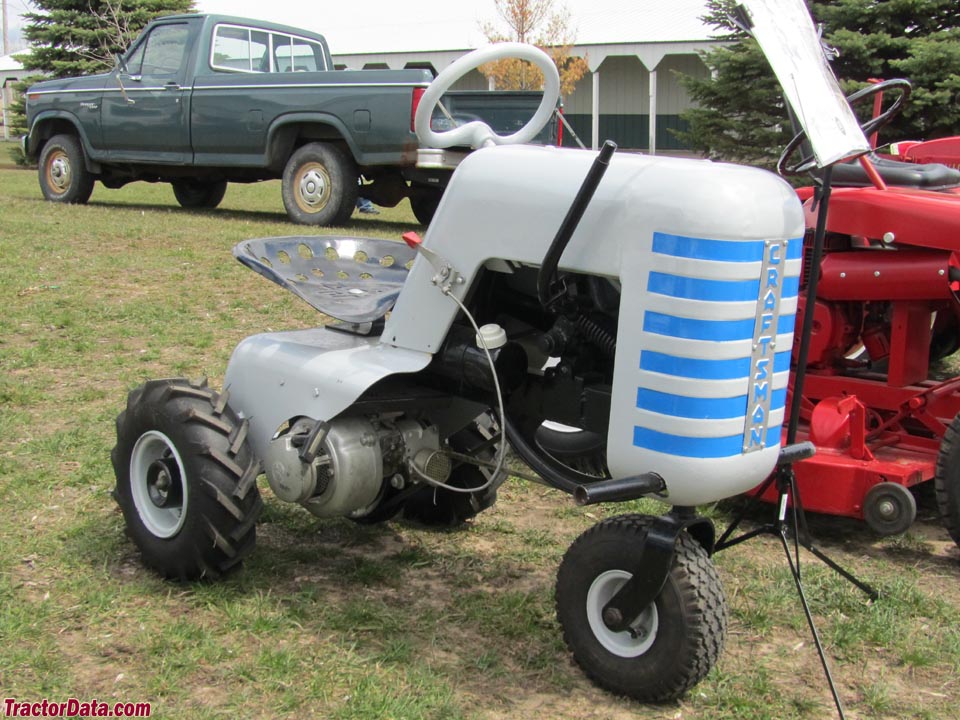

Craftsman 132.82400 lawn tractor photo
1954 - 1955
Lawn tractor





Note: the Craftsman model 132.82400 is the same as the Hiller Yard Hand 100. The following data is from the Yard Hand 100 listing.


Production:

Distributor:Sears
Manufacturer:Hiller
Factory:Redwood City, California, USA
Original price (USD)
   $234 (1953 )


Craftsman 132.82400 Engine:

   1.7HP Power Products 59cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:0.25 gal [0.9 L]


Dimensions & Tires:

Weight:131 lbs [59 kg]
full dimensions and tires ...


Craftsman 132.82400 attachments:

 20" towed rear-mount mower deck
all 132.82400 attachments ...


132.82400 Serial Numbers:

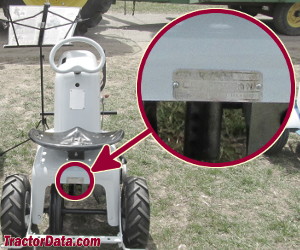

Location:Tag on rear of tractor, below seat.

- Serial numbers unknown -



Mechanical:

Transmission:2-speed belt-drive
Chassis:3x2 2WD
Steering:manual
Cab:Open operator station with steel pan seat.
