Lawn Tractors > Bolens > H18XL 1858

Bolens H18XL 1858

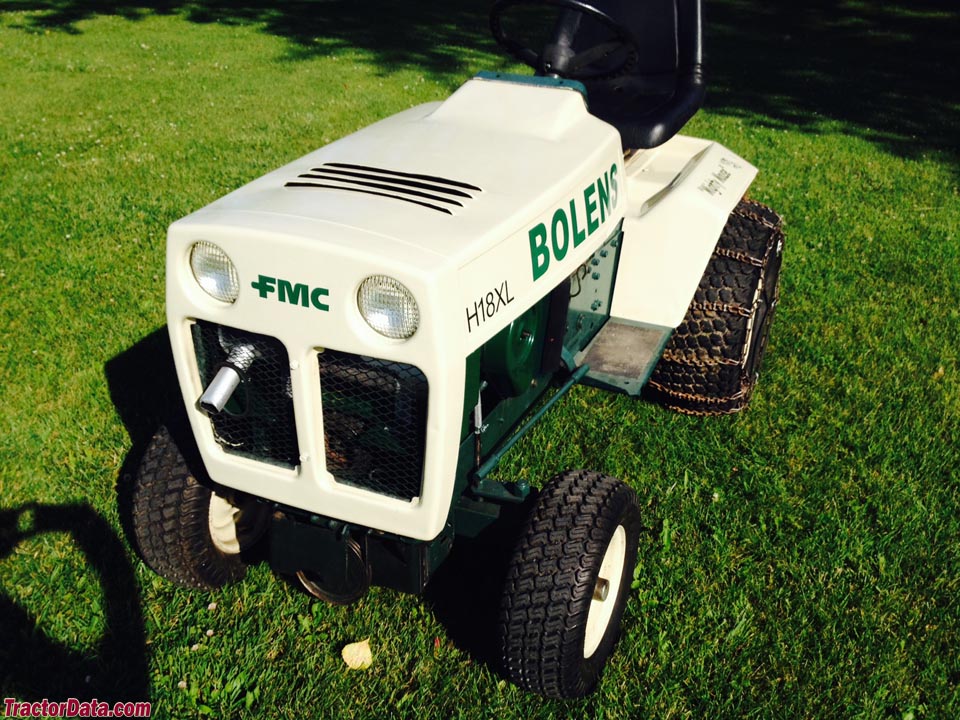

Bolens H18XL 1858 lawn tractor photo
1980 - 1981   Medium Frame Series
Garden tractor






Production:

Manufacturer:Bolens


Bolens H18XL Engine:

   18HP Tecumseh 491cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:1.6 gal [6.1 L]


Rear Hitch:

Type:sleeve hitch (optional)


Power Take-off (PTO):

Front PTO:independent
Clutch:electric


Dimensions & Tires:

Wheelbase:49 inches [124 cm]
Weight:785 lbs [356 kg]
Front tire:16/6.50-8
Rear tire:23/10.50-12
full dimensions and tires ...


Bolens H18XL attachments:

 42" mid-mount mower deck
 48" mid-mount mower deck
 snowblower
 blade
all H18XL attachments ...


H18XL Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Steering:manual
Brakes:disc
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
