| | 2013 - 2015 |
| Riding lawn mower |
|
| Engine Detail |

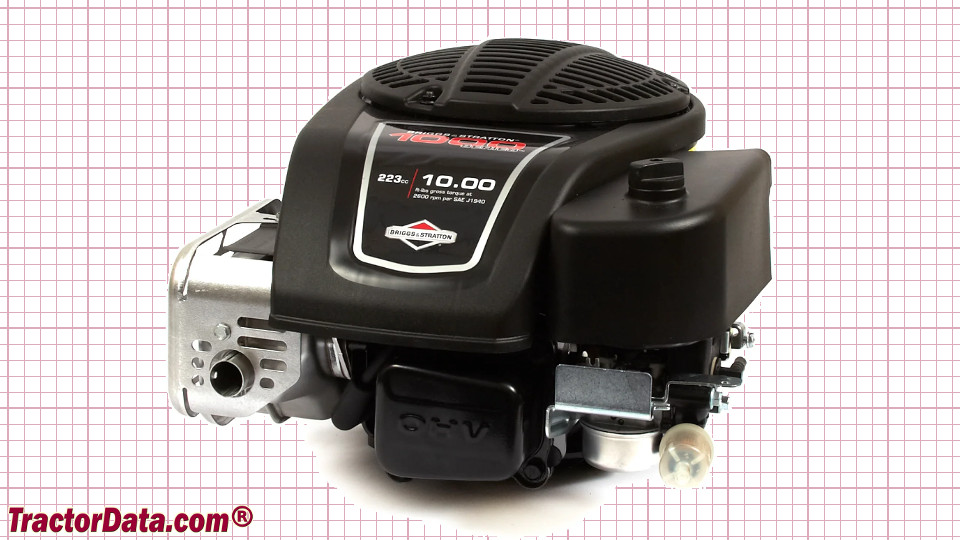

| Briggs & Stratton 14D937 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 222 cc
13.6 ci
|
| Bore/Stroke | 2.913x2.040 inches
74 x 52 mm
|
| Power | 5 hp
3.7 kW
|
| Torque | 10 lb-ft
13.6 Nm
|
| Torque RPM | 2600
|
| Starter | electric
|
| Starter volts | 12
|
| Snapper RE100 Engine |
 |
