Lawn Tractors > Craftsman > 917.20385 T2600

Craftsman 917.20385 T2600 Engine



Craftsman 917.20385 T2600 lawn tractor photo
2014
T2000 Series
Lawn tractor
Husqvarna built
Series map:
917.20383
917.20385
19.0hp
19.0hp
Engine Detail
Kohler
gasoline
1-cylinder 2-valve
air-cooled vertical-shaft
Displacement596 cc
36.4 ci
Bore/Stroke3.7x3.4 inches
94 x 86 mm
Power (gross)19 hp
14.2 kW
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

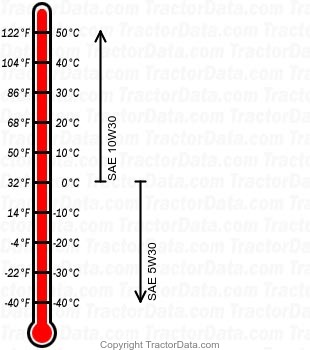

917.20385 T2600 gasoline engine oil chart
Oil capacity1.6 qts
1.5 L
Oil change50 h
