Bolens 770

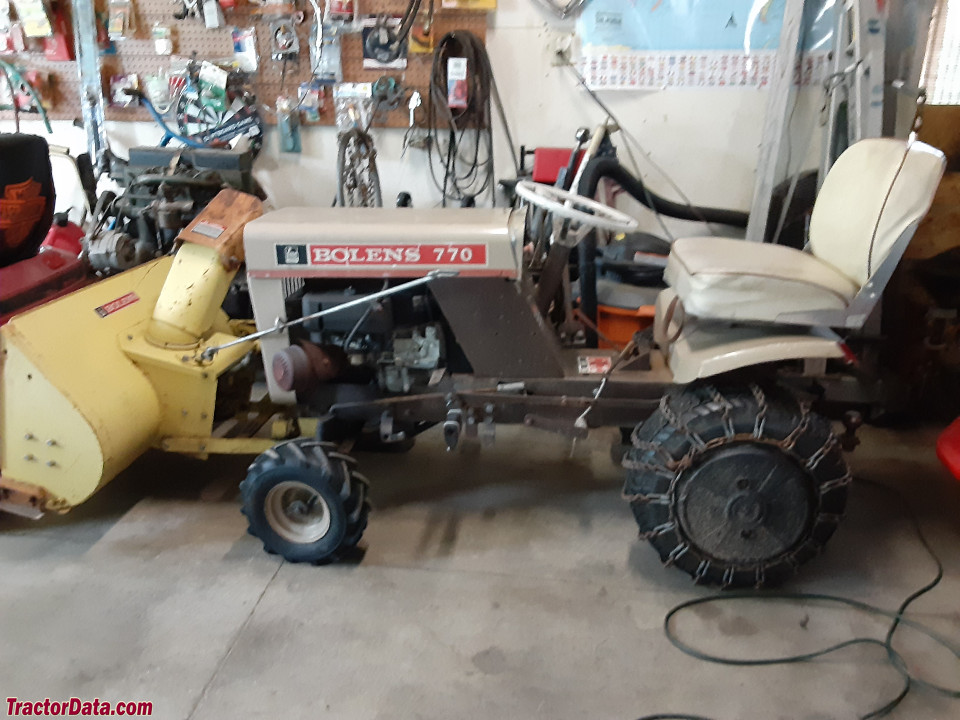

Bolens 770 lawn tractor photo
1968 - 1969
Husky Pup Series
Lawn tractor
Series map:
770
7.0hp
Production
ManufacturerBolens
Lawn tractor
Variants
770gear drive
775hydrostatic
Bolens 770 Engine
7HP Briggs & Stratton 275cc 1-cyl gasoline
Fuel tank1 gal
3.8 L
Engine details ...
Mechanical
Two-wheel drive
Steeringmanual
Open operator station
Dimensions & Tires
Wheelbase40.5 inches
102 cm
Weight400 lbs
181 kg
Front tire13x5.00x6
Rear tire20x8.0x10
Full dimensions and tires ...
Bolens 770 attachments
32" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
770 references literature
Husky Tractors published in 1968, by Bolens
Outdoor Power Equipment published in 1968, by Bolens
Husky Tractors published in 1969, by Bolens
