Bolens G14XL 1461

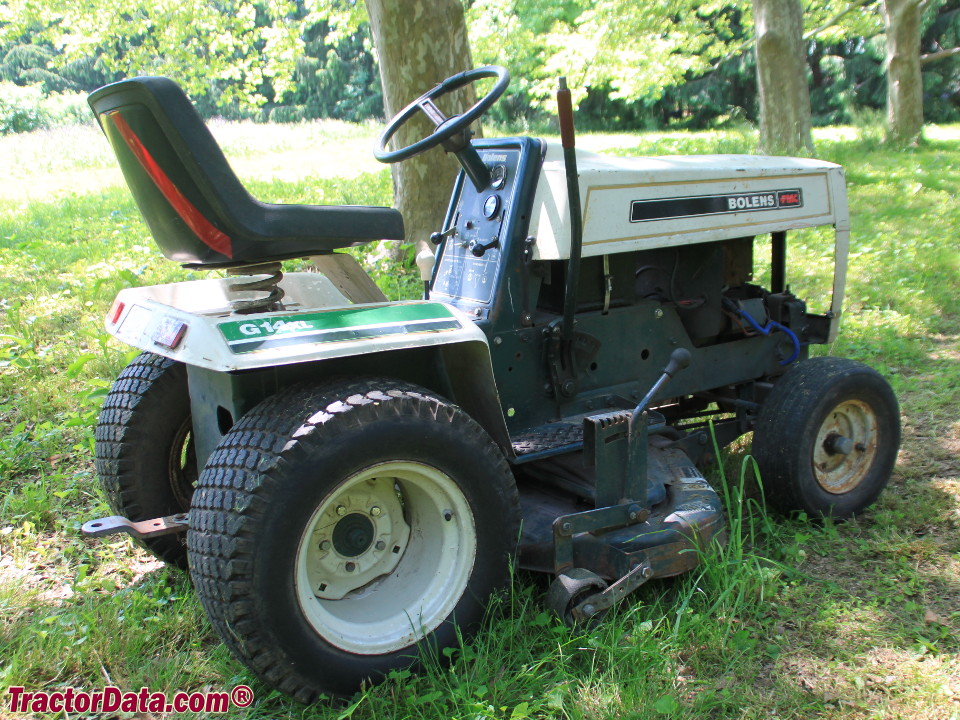

Bolens G14XL 1461 lawn tractor photo
1979 - 1980   Medium Frame XL Series
Garden tractor






Production:

Manufacturer:Bolens


Variants:

G14XL:gear drive
H14XL:hydrostatic


Bolens G14XL Engine:

   14HP Tecumseh 388cc 1-cyl gasoline
full engine details ...


Capacity:

Fuel:1.6 gal [6.1 L]


Rear Hitch:

Type:sleeve hitch


Power Take-off (PTO):

Front PTO:independent
Clutch:electric
Front RPM:3600 (pulley)


Dimensions & Tires:

Wheelbase:49 inches [124 cm]
Weight:775 lbs [351 kg]
Front tire:16x6.50-8
Rear tire:23x10.50-12
full dimensions and tires ...


Bolens G14XL attachments:

 42" mid-mount mower deck
 48" mid-mount mower deck
 snowblower
 blade
all G14XL attachments ...


G14XL Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:4-speed gear
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical band
Cab:Open operator station. Vinyl soft-side cab optional.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
Amp-hours:45
