Bolens QT-17 1666


Bolens QT-17 1666 lawn tractor photo
1979 - 1983
Q Series
Garden tractor
QT-16
Series:QT-17 1666
1900
Production
ManufacturerBolens
TypeGarden tractor
FactoryPort Washington, Wisconsin, USA
Bolens QT-17 Engine
17HP Kohler 691cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station. Soft-side cab optional.
Tractor hitch
Rear Type0 OptOptional
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear RPM2000
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase48.5 inches
123 cm
Weight850 lbs
385 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Bolens QT-17 attachments
48" mid-mount mower deck
54" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery volts12
References

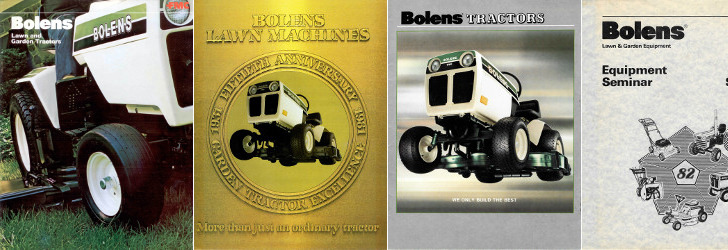

QT-17 1666 reference literature
Lawn and Garden Tractors published in 1978, by Bolens
Bolens Tractors published in 1982
