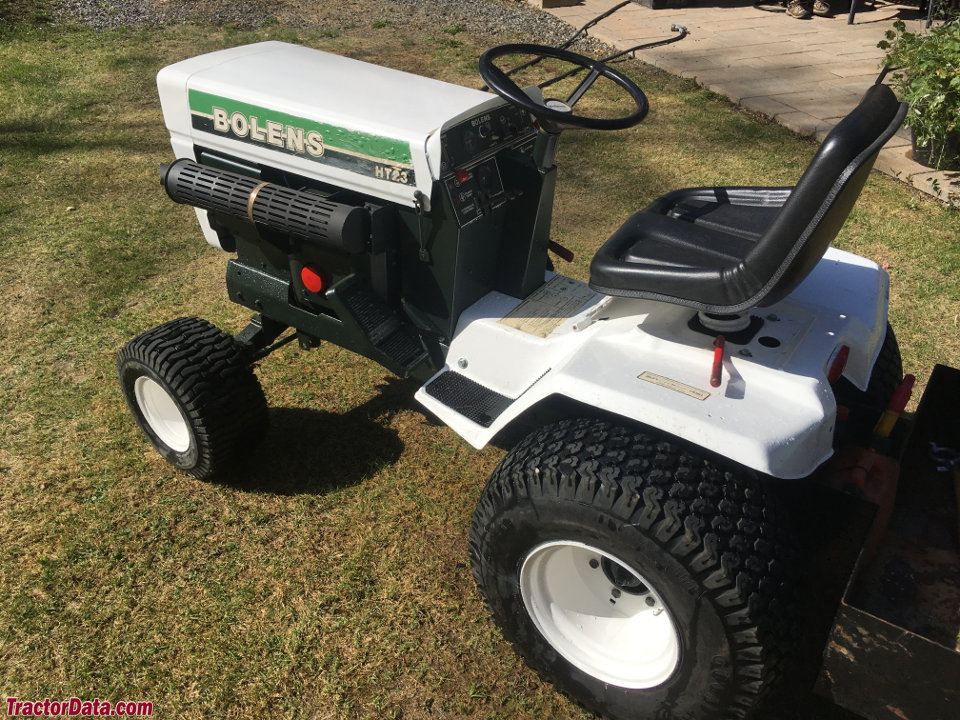

Bolens HT-23

No photo available
1979 - 1987   Large Frame Series
Garden tractor
Previous model:Bolens HT-20






Production:

Manufacturer:Bolens
Factory:Port Washington, Wisconsin, USA


Bolens HT-23 Engine:

   23HP Kohler 945cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:5 gal [18.9 L]


3-Point Hitch:

Rear Type:0 (optional)


Power Take-off (PTO):

Front RPM:2000


Dimensions & Tires:

Wheelbase:52 inches [132 cm]
Weight:1,100 lbs [498 kg]
Front tire:18x8.50-8
Rear tire:26x12.00-12
full dimensions and tires ...


Bolens HT-23 attachments:

 48" mid-mount mower deck
 54" mid-mount mower deck
all HT-23 attachments ...


HT-23 Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
