Lawn Tractors > Craftsman > 917.25482 FF/20

Craftsman 917.25482 FF/20

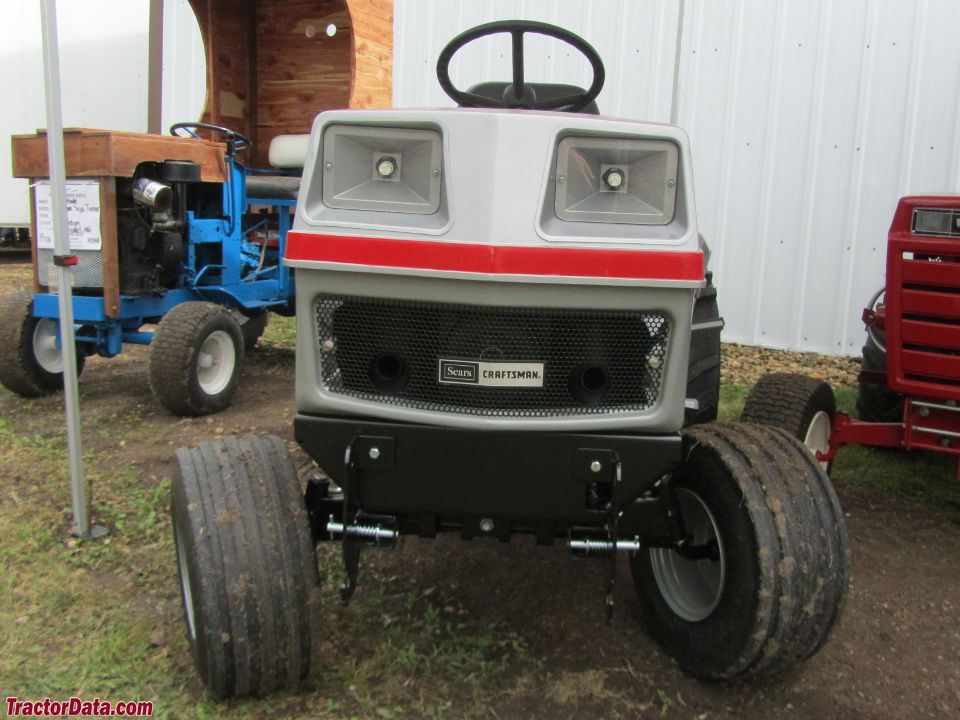

Craftsman 917.25482 FF/20 lawn tractor photo
1981 - 1982   FF Series
Garden tractor
Series next:Craftsman 917.25483
Series back:Craftsman 917.25481






Production:

Distributor:Craftsman
Manufacturer:Roper
Original price (USD):$4,500 (1982)


Craftsman 917.25482 Engine:

   20HP Onan 781cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:5 gal [18.9 L]


3-Point Hitch:

Rear Type:0*Optional


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:2000*Optional
Front PTO:independent
Clutch:electric


Dimensions & Tires:

Weight:850 lbs [385 kg]
Front tire:18x8.50-8
Rear tire:26x12-12
full dimensions and tires ...


Craftsman 917.25482 attachments:

 44" mid-mount mower deck
 50" mid-mount mower deck
 snowblower
 blade
 front-end loader
all 917.25482 attachments ...


917.25482 Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
