Cub Cadet 2176

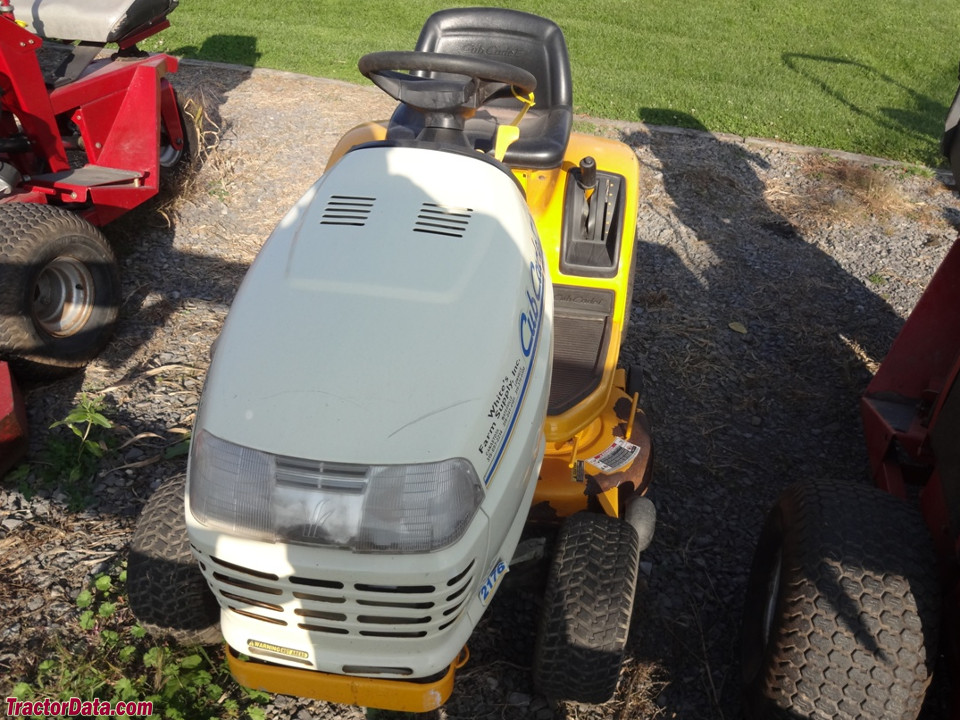

Cub Cadet 2176 lawn tractor photo
2000 - 2002
2000 Series
Lawn tractor
Series map:
2166
2176
2186
16.0hp
17.0hp
18.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Lawn tractor
Cub Cadet 2176 Engine
17HP Kohler 624cc 2-cyl gasoline
Fuel tank2.1 gal
7.9 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Internal expanding brakes
Open operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase47 inches
119 cm
Weight791 lbs
358 kg
Front tire15x6-6
Rear tire20x9-8
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA275
Battery volts12
References
2176 references literature
Series 2000 Tractors published in 2002, by Cub Cadet
