    Cub Cadet 1525 - engine

    Cub Cadet 1525 lawn tractor photo
    1500 Series
    Lawn tractor
    Larger:Cub Cadet 1527
    more Cub Cadet 1525 specifications...






    Engine Detail:

     Kawasaki FH430V
     gasoline
     2-cylinder
     air-cooled
     431 cc [26.3ci ]
    Bore/Stroke:2.56x2.56 inches [65 x 65 mm]
    Power (gross):15 hp [11.2 kW]
    Compression:8.5:1
    Rated RPM:3600
    Idle RPM:1200-3600
    Torque:23.6 lb-ft [32.0 Nm]
    Torque RPM:2400
    Starter:electric
    Starter volts:12
    Oil capacity:1.8 qts [1.7 L]
    Oil change:100 h
    Sparkplug:Champion RCJ8Y
    Sparkplug gap:0.030 inches [0.762 mm]

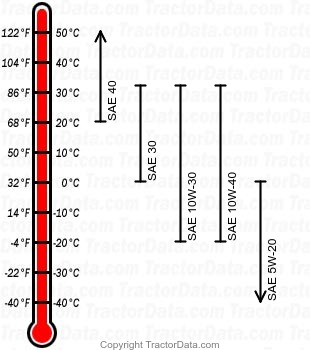

    1525 gasoline engine oil chart
