John Deere X165 Engine


John Deere X165 lawn tractor photo
2011 - 2017
X100 Series
Lawn tractor
X140
Series:X145X165
X166
Engine Detail
Briggs & Stratton 40
gasoline
2-cylinder
air-cooled
Displacement:655 cc
40 ci
Bore/Stroke:2.97x2.89 inches
75 x 73 mm
Power (gross):17.8 hp
13.3 kW
Air cleaner:paper and foam
Starter:electric
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Point gap:0.010 inches
0.254 mm
Intake valve clearance:0.005 inches
0.127 mm
Exhaust valve clearance:0.005 inches
0.127 mm
Engine Oil

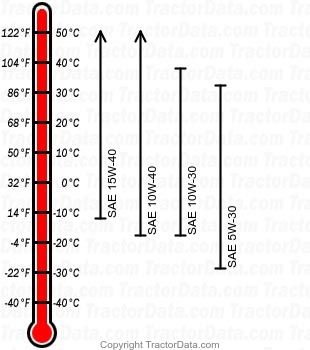

X165 gasoline engine oil chart
Oil capacity:2.0 qts
1.9 L
