Cub Cadet 1641


Cub Cadet 1641 lawn tractor photo
1992 - 1997
Garden tractor
Series map:
1440
1641
14.0hp
16.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Cub Cadet 1641 Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Dual disc brakes
Open operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase46.5 inches
118 cm
Weight789 lbs
357 kg
Front tire16x6.5-8
Rear tire23x10.5-12
Full dimensions and tires ...
Cub Cadet 1641 attachments
42" mid-mount mower deck
44" mid-mount mower deck
46" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
1641 Serial Numbers
1992821101
1993836001
1994851001
1995864501
1996880001
1997889001

FAQ: How to read a serial number table.
1641 Serial Location

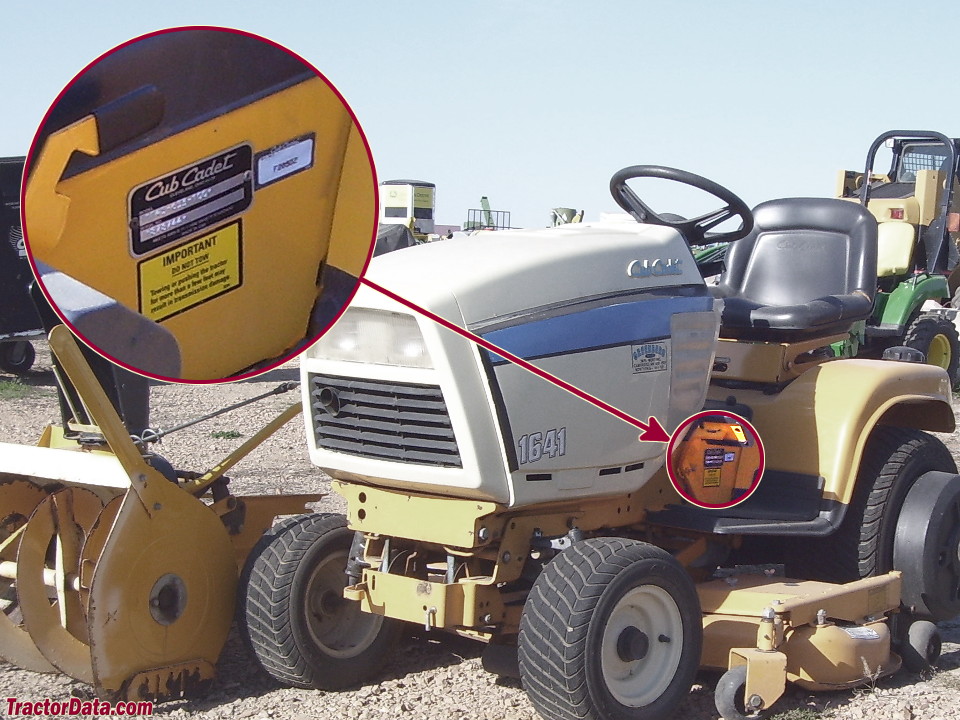

Cub Cadet 1641 serial number location
Serial number plate on the right side of the tractor frame
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA440
Battery volts12
References
1641 references literature
1992 Product Line published by Cub Cadet
Garden Tractors published in 1992, by Cub Cadet
Garden Tractors published in 1993, by Cub Cadet
Garden Tractors published in 1994, by Cub Cadet
Full Line published in 1995, by Cub Cadet
Garden & Super Garden Tractors published in 1995, by Cub Cadet
Full Line published in 1996, by Cub Cadet
Garden & Super Garden Tractors published in 1996, by Cub Cadet
