Cub Cadet 1812

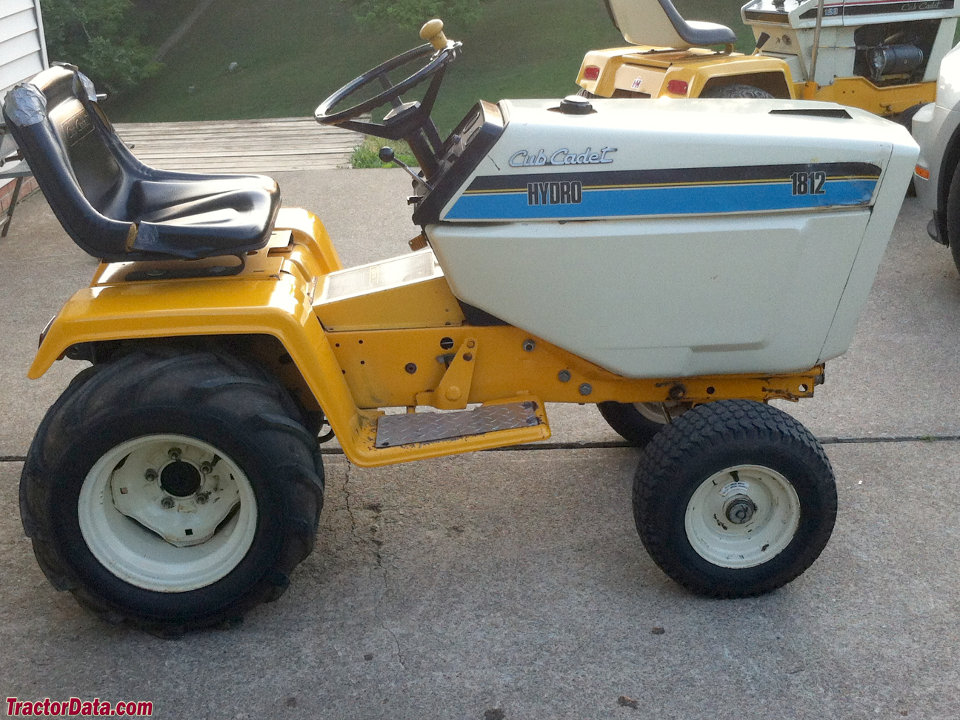

Cub Cadet 1812 lawn tractor photo
1986 - 1989
Garden tractor
Series:18111812
Production
Manufacturer:Cub Cadet (a part of MTD)
Type:Garden tractor
Factory:Brownsville, Tennessee, USA
Variants
1806:gear drive
1810:hydrostatic
1811:hydro with hydraulic lift
1812:hydro with lift and remotes
Cub Cadet 1812 Engine
18HP Kohler 691cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:dual disc
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Capacity
Fuel:4 gal
15.1 L
Tractor hitch
Rear Type:0*Optional
Power Take-off (PTO)
Front PTO:independent
Clutch:electric
Dimensions & Tires
Wheelbase:44 inches
111 cm
Front tire:16x6.50-8
Rear tire:23x10.50-12
Full dimensions and tires ...
Cub Cadet 1812 attachments
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
snowblower
blade
Attachment details ...
1812 Serial Numbers
Location:Serial number plate on the left side of the Cub Cadet 1812, above the foot rest.
photo of 1812 serial number

1986: 747225
1987: 756300
1988: 767352
1989: 779097

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:15
Battery
Number:1
Volts:12
