Cub Cadet 3204


Cub Cadet 3204 lawn tractor photo
2001 - 2003
3000 Series
Garden tractor
Series map:
3204
3206
20.0hp
20.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Garden tractor
Cub Cadet 3204 Engine
20HP Kohler 622cc 2-cyl gasoline
Fuel tank4.5 gal
17.0 L
Engine details ...
Mechanical
Two-wheel drive
Steeringpower
External disk brakes
Open operator station.
Tractor hitch
Rear Type0 (optional)
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49.5 inches
125 cm
Weight795 lbs
360 kg
Front tire16x6.5
Rear tire23x9.5
Full dimensions and tires ...
Cub Cadet 3204 attachments
44" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
3204 Serial Numbers
3204 Serial Location

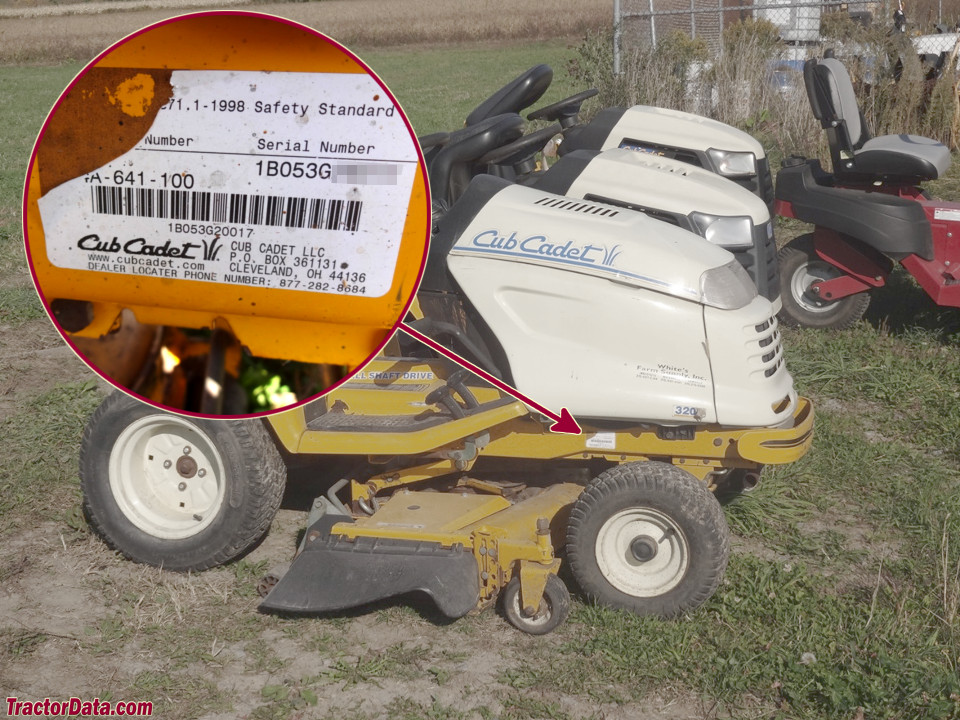

Cub Cadet 3204 serial number location
Serial number decal on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA435
Battery volts12
References
3204 references literature
Outdoor Power Equipment 2003 published by Cub Cadet
