Lawn Tractors > John Deere > D100

John Deere D100



John Deere D100 tractor photo
2011 - 2012
D100 Series
Lawn tractor
Series map:
D100
D105
17.5hp
17.5hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,499 in 2011
John Deere D100 Engine
17.5HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank2.1 gal
7.9 L
 2.4 gal (California model)
9.1 L
Engine details ...
John Deere D100 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical disc on transaxle brakes
Open operator station. Adjustable 11-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure.
Photos
John Deere D100
John Deere D100 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase48.9 inches
124 cm
Weight442 lbs
200 kg
Front tire15x6.00-6
Rear tire20x8.0-8
Full dimensions and tires ...
John Deere D100 attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...

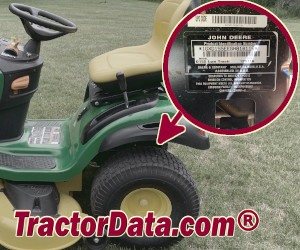

D100 Serial Numbers
Location:Serial number on rear of tractor, left side, under fender.
2011100001
2012200001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps9
Battery volts12
Battery GroupU1
References
D100 references literature
Operator's Manual D100 Series (OMGX24147) published in 2011
Operator's Manual D100 Series (OMGX24230) published in 2012
