Lawn Tractors > Craftsman > 917.27604

Craftsman 917.27604 Engine



Craftsman 917.27604 tractor photo
2003
GT 5000 Series
Garden tractor
AYP built
Series map:
917.27604
25.0hp
Engine Detail
Kohler CV730
gasoline
2-cylinder
air-cooled
Displacement721 cc
44 ci
Bore/Stroke3.3x2.6 inches
84 x 66 mm
Power (gross)25 hp
18.6 kW
Air cleanerpaper
Rated RPM3600
Starterelectric
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

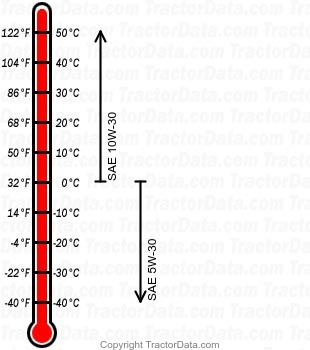

917.27604 gasoline engine oil chart
Oil capacity2 qts
1.9 L
