Craftsman 917.27622

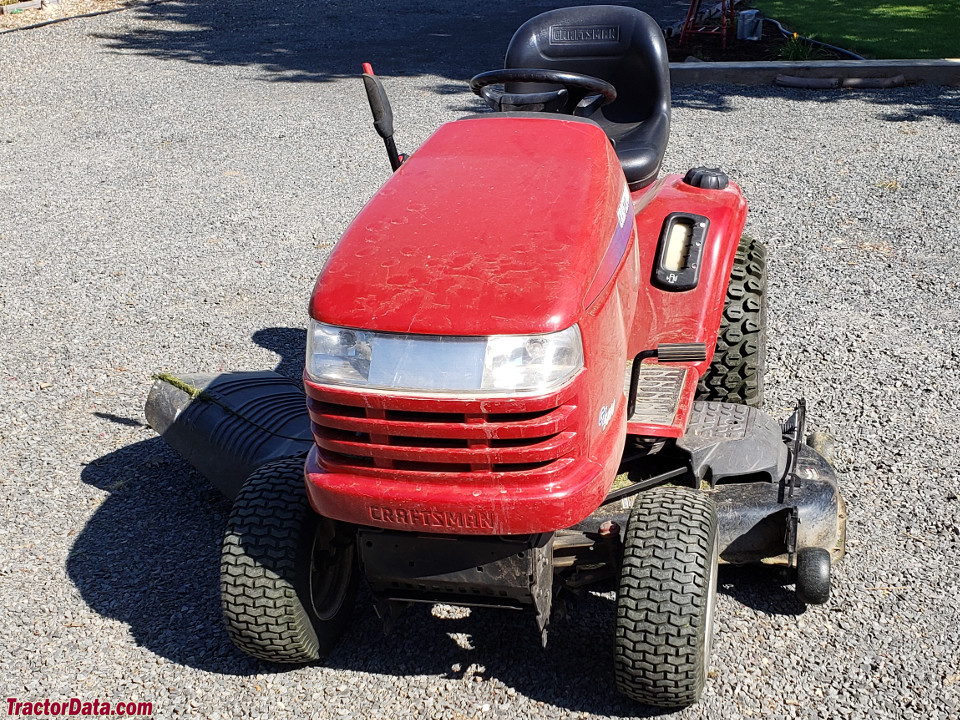

Craftsman 917.27622 lawn tractor photo
2006
GT5000 Series
Garden tractor
AYP built
Production
Distributor:Craftsman (a part of Sears)
Manufacturer:AYP
Type:Garden tractor
Craftsman 917.27622 Engine
22HP Briggs & Stratton 656cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Capacity
Fuel:5 gal
18.9 L
917.27622 Serial Numbers

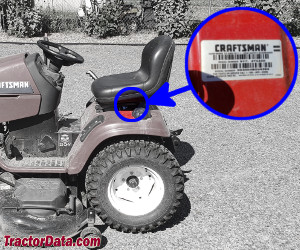

Location:Serial number decal on the rear fender deck, under the seat.
photo of 917.27622 serial number

Electrical
Ground:negative
Charging amps:16
Battery
Number:1
Cold-cranking amps:280
Volts:12
Amp-hours:35
Group:U1R
