Craftsman 917.27349 Engine


No photo available
2004
Lawn tractor
AYP built
Engine Detail
Honda GXV530
gasoline
2-cylinder
air-cooled
Displacement:530 cc
32.34 ci
Bore/Stroke:3.031x2.244 inches
77 x 57 mm
Power (gross):16.5 hp
12.3 kW
Starter:electric
Starter volts:12
Sparkplug:NGK BPR5ES
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

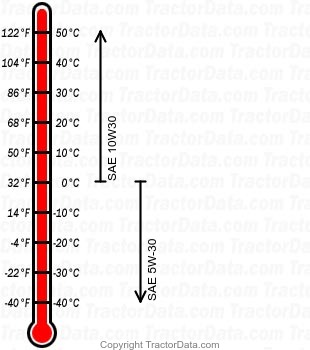

917.27349 gasoline engine oil chart
Oil capacity:1.11 qts
1.1 L
