Cub Cadet 782D

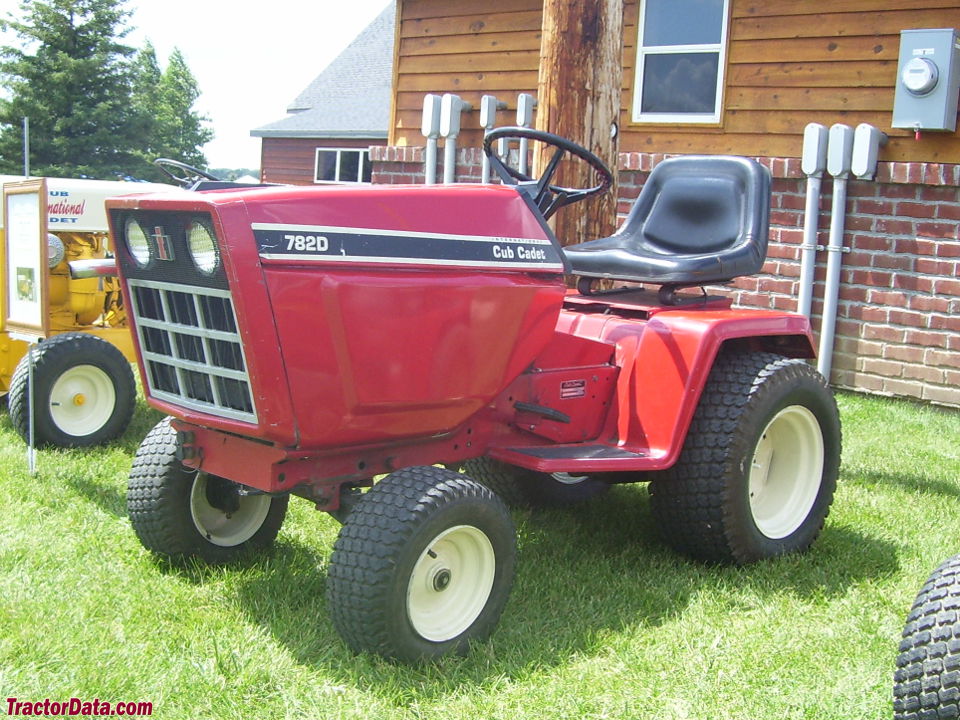

Cub Cadet 782D lawn tractor photo
1984 - 1985
CCC 82 Series
Garden tractor
Production
ManufacturerCub Cadet (a part of MTD)
TypeGarden tractor
FactoryBrownsville, Tennessee, USA
Variants
782DIH red
882Cub Cadet yellow
Cub Cadet 782D Engine
15HP Kubota 606cc 3-cyl diesel
Fuel tank4 gal
15.1 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station.
Tractor hitch
Rear Type0 (optional)
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Cub Cadet 782D attachments
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Attachment details ...
782D Serial Numbers
782D Serial Location
Cub Cadet 782D serial number location
Serial number plate on the left side of the tractor frame, above the foot rest.
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery volts12
