Gravely 8179-G

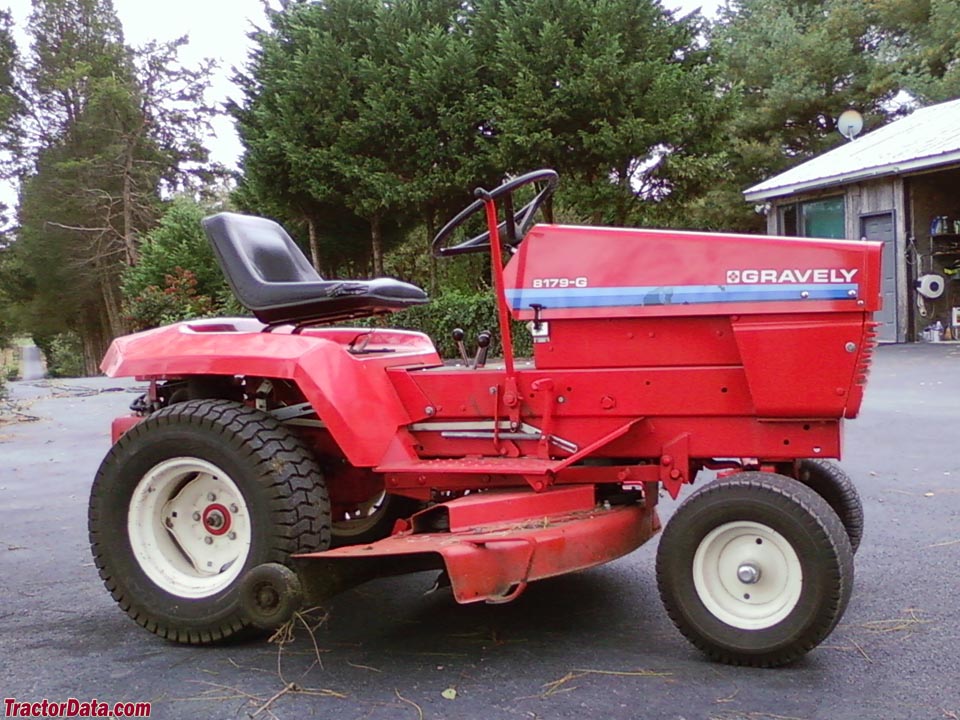

Gravely 8179-G lawn tractor photo
1986
8000-G Series
Garden tractor
Series map:
8163-G
8179-G
8199-G
16.0hp
17.0hp
19.0hp
Production
ManufacturerGravely (a part of Ariens)
Garden tractor
Gravely 8179-G Engine
17HP Kohler 691cc 2-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Capacity
Fuel5.3 gal
20.1 L
Hydraulic system0.25 gal
0.9 L
Hydraulics
Capacity0.25 gal
0.9 L
Oil type
ATF Dextron II
Power Take-off (PTO)
Mid PTOindependent
Dimensions & Tires
Wheelbase52.25 inches
132 cm
Weight854 to 895 pounds
Front tire16x7.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Gravely 8179-G attachments
40" mid-mount mower deck
50" mid-mount mower deck
60" mid-mount mower deck
snowblower
blade
Attachment details ...
8179-G Serial Numbers
Location:Under hood on right side, on instrument panel support frame.
Electrical
Groundnegative
Battery volts12
Battery AH42
Battery GroupBCI 22F
References
8179-G references literature
Riding Tractors published in 1986, by Gravely
