Ingersoll 3012

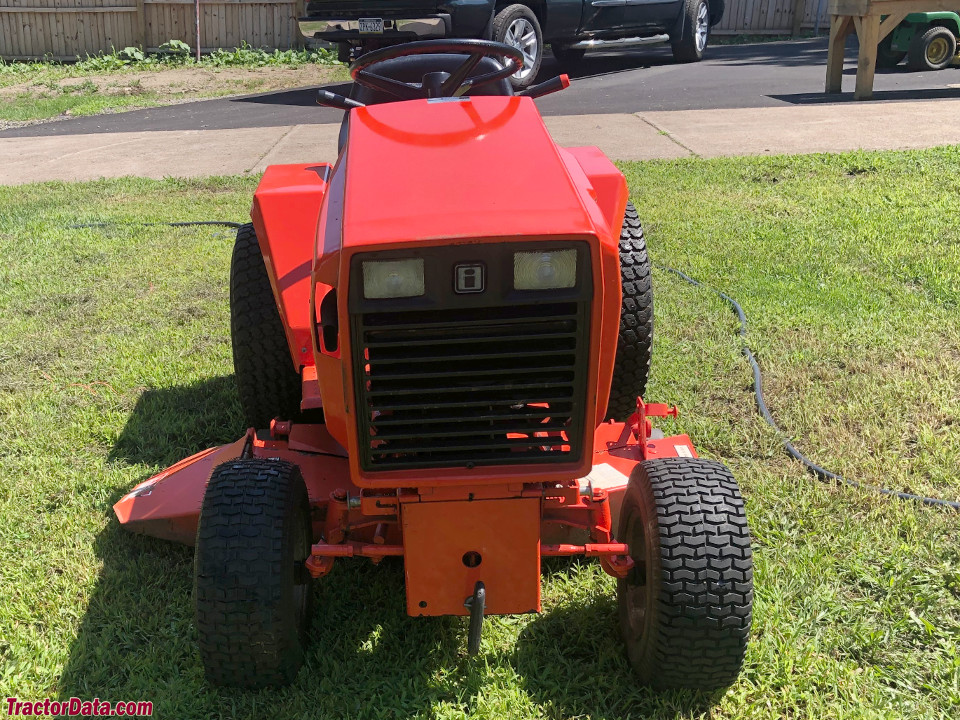

Ingersoll 3012 lawn tractor photo
1989 - 1993
3000 Series
Garden tractor
Series map:
3012
3014
12.0hp
14.0hp
Production
ManufacturerIngersoll
Garden tractor
Built in Winneconne, Wisconsin, USA
Ingersoll 3012 Engines
12HP Kohler 476cc 1-cyl gasoline
12HP Briggs & Stratton 480cc 2-cyl gasoline
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Capacity
Fuel3 gal
11.4 L
Hydraulic system1.5 gal
5.7 L
Hydraulics
Typeopen center
Capacity1.5 gal
5.7 L
Pressure2000 psi (transmission)
137.9 bar
 575 psi (lift)
39.6 bar
Valves2
Pump flow8 gpm
30.3 lpm
Tractor hitch
Rear Type0 OptOptional
Typesleeve hitch OptOptional
Dimensions & Tires
Wheelbase46 inches
116 cm
Weight683 lbs
309 kg
Full dimensions and tires ...
Ingersoll 3012 attachments
42" mid-mount mower deck
44" mid-mount mower deck
snowblower
blade
Attachment details ...
3012 Serial Numbers
198914124800
199014125092
19911415700
199214167800
199314163229

FAQ: How to read a serial number table.
3012 Serial Location

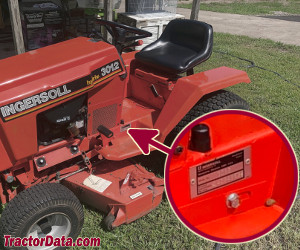

Ingersoll 3012 serial number location
Serial number on the left side of the tractor frame, above the footrest.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery CCA230
Battery volts12
Battery AH32
References
3012 references literature
Compact Tractors 3010, 3012, 3014, 4014 (8-55970) published in 1989
Compact Tractors 3012, 3014, 3016, 3018, 3018PS, 4016, 4020, 4020PS (8-59130) published in 1993
