J.I. Case 444 Engine


J.I. Case 444 lawn tractor photo
1969 - 1988
Model year
400 Series
Garden tractor
Series map:
442
444
446
12.0hp
14.0hp
16.0hp
Engine Detail
Kohler K321AS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement512 cc
31.27 ci
Bore/Stroke3.50x3.25 inches
89 x 83 mm
Power (gross)14 hp
10.4 kW
Compression7:1
Starterelectric
Starter volts12
Sparkplug gap0.035 inches
0.889 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (Cold)
0.254 mm
Exhaust valve clearance0.020 inches (Cold)
0.508 mm
Engine Oil

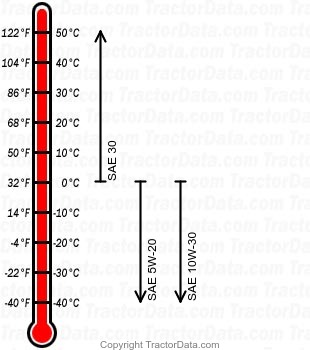

444 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
