Sabre 1948HV

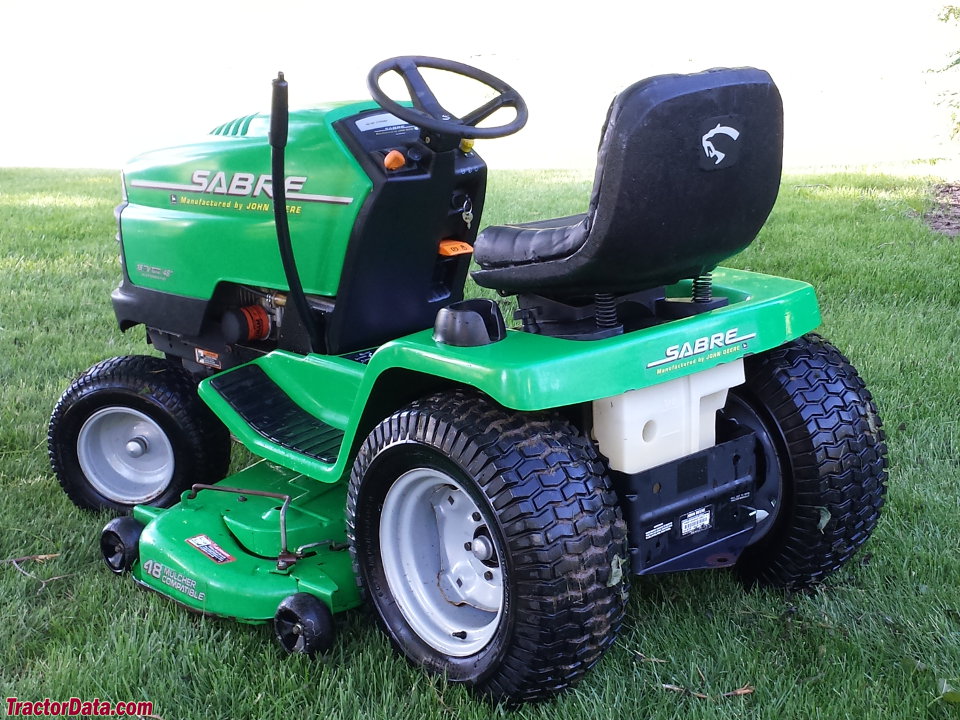

Sabre 1948HV lawn tractor photo
2000 - 2002
Yard Series
Garden tractor
Production
ManufacturerSabre (a part of John Deere)
TypeGarden tractor
FactoriesHoricon, Wisconsin, USA
 Greeneville, Tennessee, USA
Original price$3,529 (1999 )
Variants
1948GVgear
1948HVhydrostatic
Sabre 1948HV Engine
19HP Kohler 622cc 2-cyl gasoline
Fuel tank3.0 gal
11.4 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual sector-and-pinion
Brakesdisk
CabOpen operator station.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase48.5 inches
123 cm
Weight570 lbs
258 kg
Front tire16x6.50-8
Rear tire23x9.50-12
Full dimensions and tires ...
Sabre 1948HV attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...
1948HV Serial Numbers
2000M01948H010001
2001M01948H015001
2002GX1948H010001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
1948HV reference literature
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere
