Honda H4013 Engine


Honda H4013 lawn tractor photo
1990 - 1991
Engine Detail
Honda GXV390
gasoline
1-cylinder
air-cooled
Displacement:388 cc
23.7 ci
Bore/Stroke:3.46x2.51 inches
88 x 64 mm
Power:13 hp
9.7 kW
Rated RPM:3600
Starter:electric
Starter volts:12
Sparkplug gap:0.030 inches
0.762 mm
Engine Oil

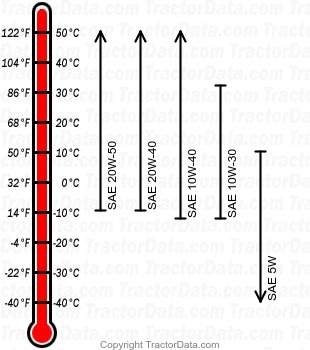

H4013 gasoline engine oil chart
Oil capacity:1.2 qts
1.1 L
