Honda HT3810
|
|
| Production | |
| Manufacturer | Honda |
| Lawn tractor | |
| Honda HT3810 Engine | |
| 10HP Honda 406cc 1-cyl gasoline | |
| Fuel tank | 1.88 gal 7.1 L |
 Engine details ... | |
| Honda HT3810 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 Honda HT3810 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Wheelbase | 45.7 inches 116 cm |
| Weight | 544.6 lbs 247 kg |
| Front tire | 15x6.00-6 |
| Rear tire | 18x8.50-8 |
 Full dimensions and tires ... | |
| Honda HT3810 attachments | |
| 38" mid-mount mower deck | |
 Attachment details ... |
| HT3810 Serial Numbers |

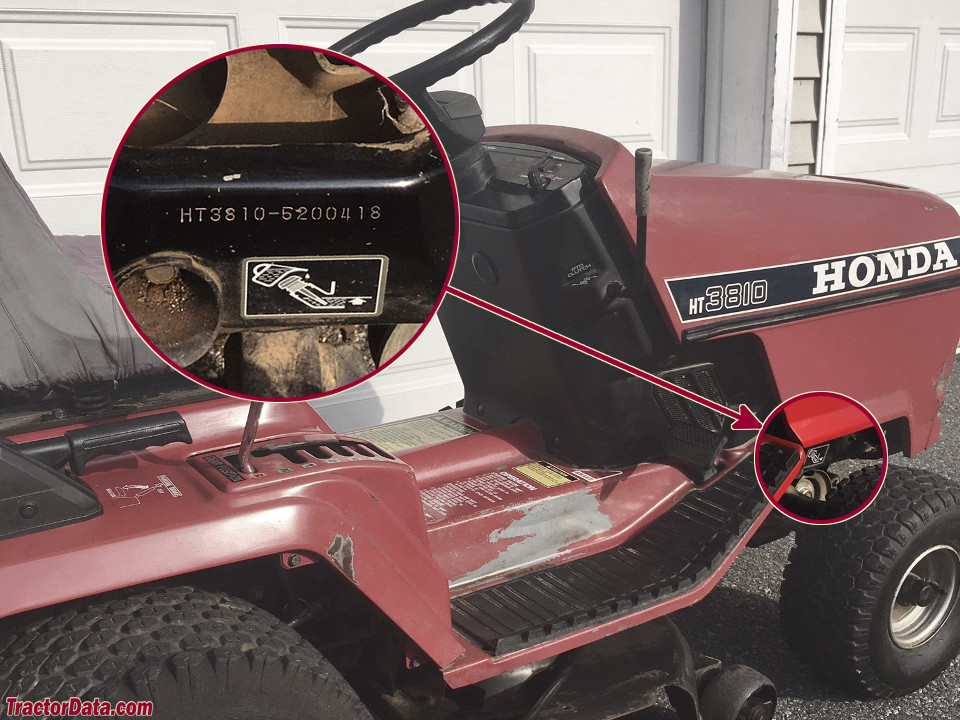

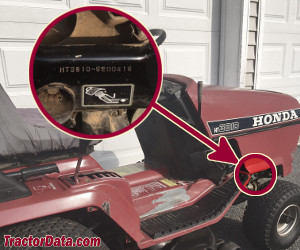

| HT3810 Serial Location | |
 | |
| Serial number stamped into the right side of the tractor's frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 30 |
| References | |
 | |
| Owner's Manual HT3810 (31750000) published in 1984 | |
| Honda Lawn Tractors published in 1986 |
