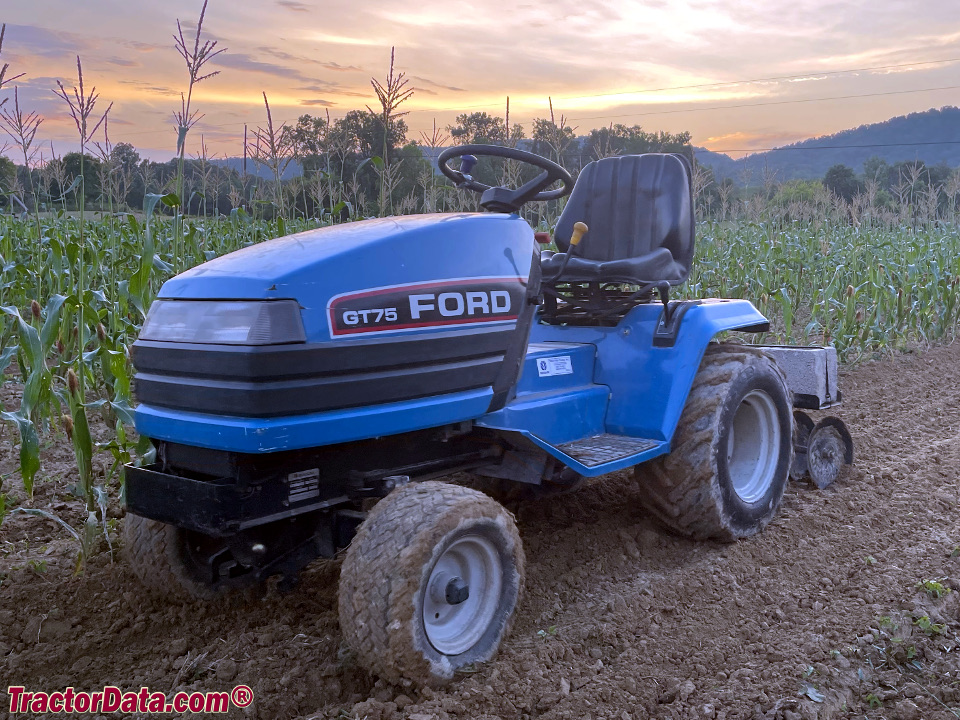

Ford GT-75
|
|
| Production | |
| Distributor | Ford |
| Manufacturer | Shibaura |
| Garden tractor | |
| Ford GT-75 Engine | |
| 16HP Shibaura 675cc 3-cyl diesel | |
| Fuel tank | 4.2 gal 15.9 L |
 Engine details ... | |
| Ford GT-75 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Steering | power OptOptional |
| Disc brakes | |
| Open operator station. | |
| Photos | |
 | |
 Ford GT-75 photos... | |
| Tractor hitch | |
| Rear Type | 0 OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | optional |
| Mid PTO | independent |
| Clutch | manual idler pulley |
| Front PTO | independent |
| Clutch | manual idler pulley |
| Dimensions & Tires | |
| Wheelbase | 49.8 inches 126 cm |
| Weight | 1050 lbs 476 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Ford GT-75 attachments | |
| 44" mid-mount mower deck | |
| 48" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| GT-75 Serial Number Location | |
 | |
| Serial number plate on the left side of the tractor frame, above the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery CCA | 332 |
| Battery volts | 12 |

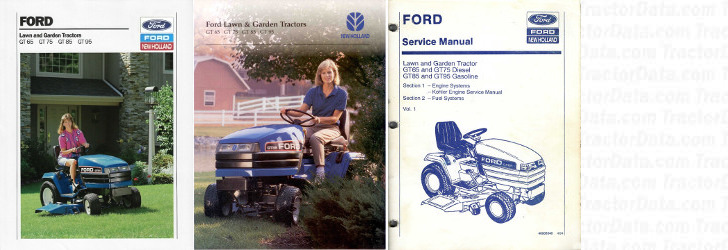

| References | |
 | |
| Lawn & Garden Tractors published in 1991, by Ford | |
| Lawn & Garden Tractors published in 1995, by Ford | |
| Service Manual GT Series (40006540) published in 1994 |
