John Deere 345 Transmission


John Deere 345 lawn tractor photo
1995 - 2001
Model year
300 Series
Garden tractor
Series map:
335
345
355D
20.0hp
18.0hp
18.0hp
Transmission
TransmissionTuff Torq K70
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity4.7 qts
4.4 L

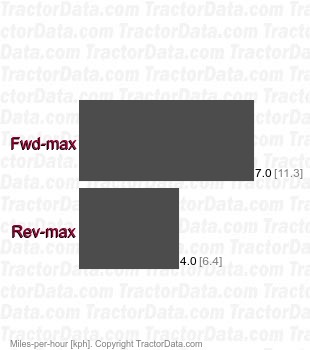

Speeds
345 K70 belt-driven hydrostatic speeds

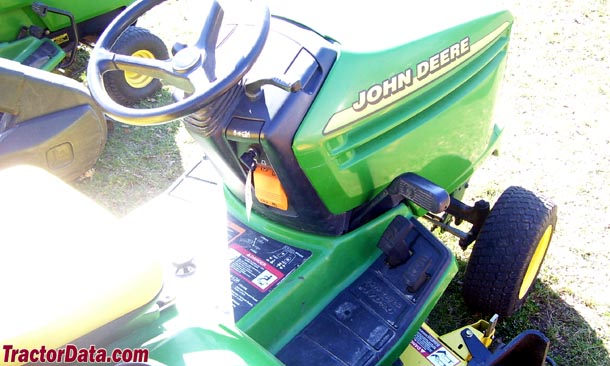

345 Transmission Controls
John Deere 345 transmission controls
1Throttle
2Brake
3Reverse
4Forward
5Parking brake
6Cruise control
